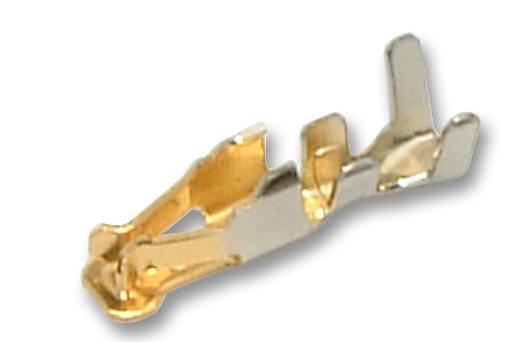

50394-8100 Contact, Socket, 24AWG, Crimp Molex

MOLEXUGS :50394-8100 Code de commande:2435432

Prix:
Prix ​​promotionnel€0,48

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (770 unité)

Documents et téléchargements

description

MOLEX - 50394-8100 - Contact, Milli-Grid™, Milli-Grid 50394, Socket, Crimp, 24 AWG, Gold Plated Contacts

  • Product Range: Milli-Grid 50394 Series
  • Contact Gender: Socket
  • Contact Termination Type: Crimp
  • Wire Size AWG Max: 24AWG
  • Contact Plating: Gold Plated Contacts
  • For Use With: Molex Milli-Grid 51110, 151100 Series Receptacle Housing Connectors
  • Wire Size AWG Min: 30AWG
  • Contact Material: Copper Alloy
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: CSA, UL
  • Cable Diameter Max: 0.56mm
  • Cable Diameter Min: 0.254mm
  • Contact Resistance: 25mohm
  • Contact Size: 24
  • Contact Termination: Crimp
  • Current Rating: 1A
  • Gender: Receptacle
  • Insulation Diameter Max: 1.4mm
  • Material: Phosphor Bronze
  • Voltage Rating VAC: 125V
  • Wire Area Size Max: 0.22mm²
  • Wire Area Size Min: 0.051mm²
  • Wire Size: 24AWG
