description

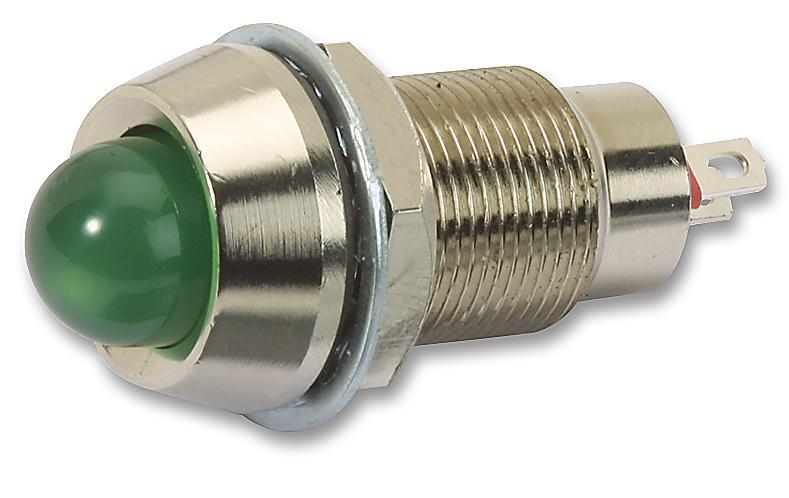

- LED Colour: Green
- Operating Voltage: 24VDC
- Mounting Hole Dia: 12.7mm
- Forward Current If: 20mA
- Luminous Intensity: 60mcd
- IP / NEMA Rating: IP67
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Bezel Diameter: 17mm
- Bulb Size: 10mm
- External Diameter: 17mm
- External Length / Height: 38.5mm
- Fixing Hole Diameter: 12.7mm
- Forward Current If Max: 20mA
- Forward Voltage: 24V
- Forward Voltage VF Max: 24V
- LED / Lamp Size: 10mm
- Length Behind Bezel: 26.5mm
- Luminous Intensity Typ: 40mcd
- Material: Brass, Bright Nickle plated
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Panel Thickness Max: 8mm
- Peak Wavelength: 565nm
- Supply Voltage V DC: 24V
- Voltage Rating V DC: 24V
- Voltage Vf Typ: 24VDC
- Wavelength Typ: 565nm
