514-114-76 LED Indicator, 240Vac, Green Marl

MARLUGS :514-114-76 Code de commande:9737871

Prix:
Prix ​​promotionnel€66,51

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Rupture de stock

Documents et téléchargements

description

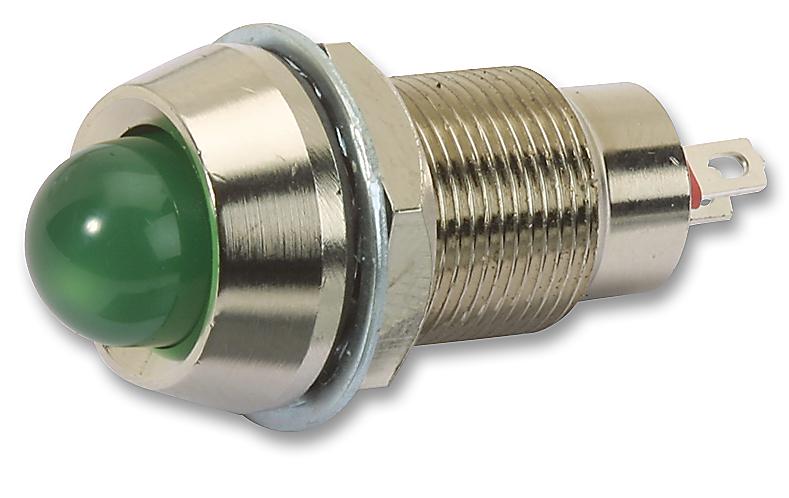

MARL - 514-114-76 - LED Panel Mount Indicator, Green, 230 VAC, 12.7 mm, 4 mA, 60 mcd, IP67

  • LED Colour: Green
  • Operating Voltage: 230VAC
  • Mounting Hole Dia: 12.7mm
  • Forward Current If: 4mA
  • Luminous Intensity: 60mcd
  • IP / NEMA Rating: IP67
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Bezel Diameter: 17mm
  • Bulb Size: 10mm
  • External Diameter: 17mm
  • External Length / Height: 38.5mm
  • Fixing Hole Diameter: 12.7mm
  • Forward Current If Max: 4mA
  • Forward Voltage: 230V
  • Forward Voltage VF Max: 240V
  • LED / Lamp Size: 10mm
  • Length Behind Bezel: 26.5mm
  • Luminous Intensity Typ: 3mcd
  • Material: Brass, Bright Nickle plated
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
  • Panel Thickness Max: 8mm
  • Peak Wavelength: 660nm
  • Voltage Rating VAC: 240V
  • Voltage Vf Typ: 240VAC
  • Wavelength Typ: 565nm
