5214NN Fan, 127mm, 24Vdc ebm-papst

EBM-PAPSTUGS :5214NN Code de commande:9601090

Prix:
Prix ​​promotionnel€110,41

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (124 unité)

Documents et téléchargements

description

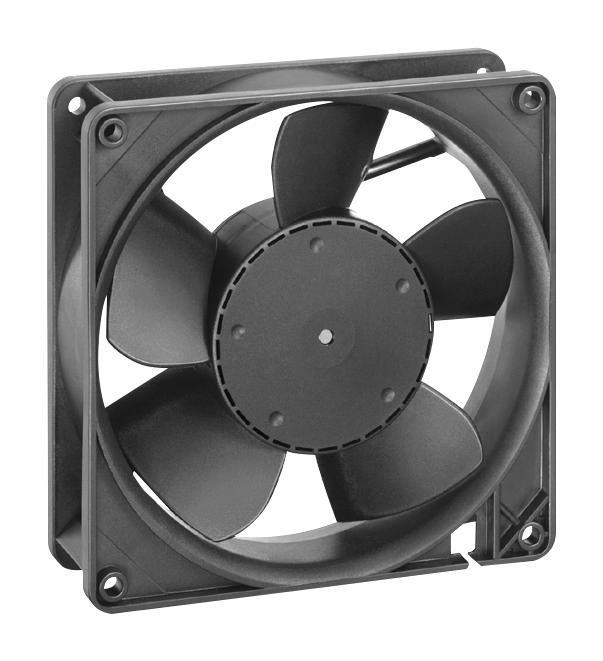

EBM-PAPST - 5214NN - DC Axial Fan, 24 V, Square, 127 mm, 38 mm, Ball Bearing, 127.1 CFM

  • Supply Voltage: 24V
  • Current Type: DC
  • Fan Frame Size: 127mm
  • External Depth: 38mm
  • Noise Rating: 46dBA
  • Flow Rate - Imperial: 127.1cu.ft/min
  • Flow Rate - Metric: 216m³/h
  • Bearing Type: Ball
  • Power Connection Type: 2 Lead Wires
  • Current Rating: -
  • Product Range: 5200N Series
  • Power Rating: 6W
  • IP Rating: IP20
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: CSA, UL
  • External Height: 127mm
  • External Width: 127mm
  • Fixing Centres: 113mm
  • Fixing Hole Diameter: 4.7mm
  • Frame Dimensions: 127mm x 127mm x 38mm
  • Input Voltage Max: 30V
  • Input Voltage Min: 18V
  • Operating Temperature Max: 72°C
  • Operating Temperature Min: -15°C
  • Operating life Time: 70000h
  • Panel Cutout Diameter: 124mm
  • Power Consumption: 4.7W
  • Standard: VDE0730
  • Supply Voltage DC Max: 30V
  • Supply Voltage DC Min: 18V
  • Type: Standard, 127mm
