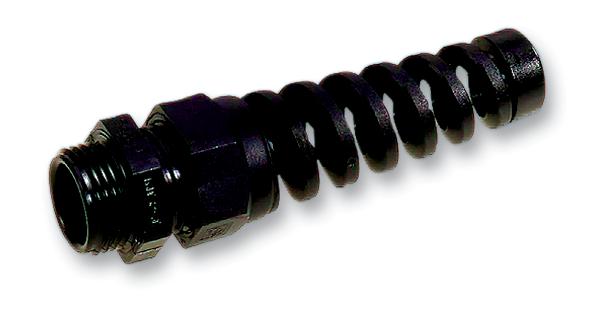

LAPP KABEL - 53015830 - Cable Gland, Skintop® BS, IP68, UV Resistant, PG13.5, 6 mm, 12 mm, Nylon (Polyamide), Black
- Thread Size - Imperial: -
- Thread Size - Metric: PG13.5
- Cable Diameter Min: 6mm
- Cable Diameter Max: 12mm
- Cable Gland Material: Nylon (Polyamide)
- Gland Colour: Black
- IP / NEMA Rating: IP68
- Product Range: Skintop BS Series
- SVHC: No SVHC (15-Jan-2019)
- Accessory Type: Cable Gland (Order Locknut 53019230 Separately)
- Body Material: Nylon (Polyamide)
- Cable Diameter: 12mm
- Cable Diameter Max - Imperial: 0.472"
- Cable Diameter Max - Metric: 12mm
- Cable Diameter Min - Imperial: 0.236"
- Cable Diameter Min - Metric: 6mm
- Colour: Black
- For Use With: Lapp Locknut 53019230
- Material: Polyamide
- Mounting Hole Dia: 20.4mm
- Operating Temperature Max: 80°C
- Operating Temperature Min: -20°C
- Thread Size: PG13.5
