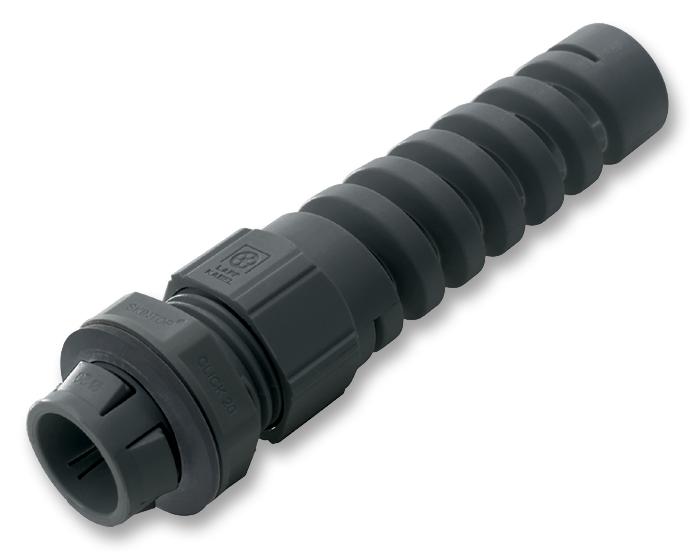

LAPP KABEL - 53112911 - Cable Gland, Skintop® Click BS, IP68, M20, 7 mm, 13 mm, Nylon (Polyamide), Black
- Thread Size - Imperial: -
- Thread Size - Metric: M20
- Cable Diameter Min: 7mm
- Cable Diameter Max: 13mm
- Cable Gland Material: Nylon (Polyamide)
- Gland Colour: Black
- IP / NEMA Rating: IP68
- Product Range: Skintop Click BS Series
- SVHC: No SVHC (15-Jan-2019)
- Accessory Type: Gland
- Cable Diameter: 13mm
- Cable Diameter Max - Imperial: 0.512"
- Cable Diameter Max - Metric: 13mm
- Cable Diameter Min - Imperial: 0.276"
- Cable Diameter Min - Metric: 7mm
- Colour: Grey
- External Length / Height: 108mm
- For Use With: Flexible Cables on Hand-Held Equipments
- Material: Polyamide + Elastomer
- Mounting Hole Dia: 20mm
- Operating Temperature Max: 100°C
- Operating Temperature Min: -20°C
- Pack Quantity: 25
- Panel Thickness Max: 4mm
- Panel Thickness Min: 1mm
- Thread Depth: 8mm
- Thread Size: M20
