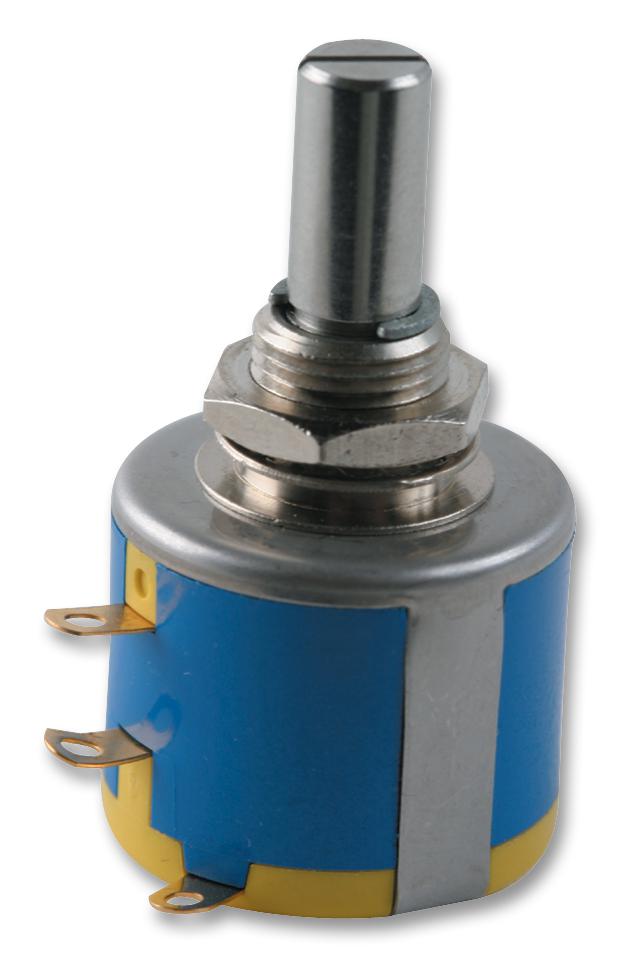

VISHAY - 534B1203JC8872 - Rotary Potentiometer, Wirewound, 20 kohm, 10 Turns, Linear, 2 W, ± 5%, 534
- Track Resistance: 20kohm
- No. of Turns: 10Turns
- Track Taper: Linear
- Power Rating: 2W
- Resistance Tolerance: ± 5%
- Product Range: 534 Series
- Potentiometer Mounting: Panel
- Shaft Diameter: 6mm
- No. of Gangs: 1
- Adjustment Type: Screwdriver Slot
- Shaft Length: 20.62mm
- Body Diameter: 22.2mm
- Electrical Angular Rotation Tolerance +: 10°
- Electrical Angular Rotation Tolerance -: -10°
- External Length / Height: 19.1mm
- Full Power Rating Temperature: 70°C
- Insulation Resistance: 1000Mohm
- Linearity, +: 0.25%
- Linearity, -: -0.25%
- Mechanical Angular Rotation Tolerance +: 10°
- Mechanical Angular Rotation Tolerance -: -10°
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Proof Voltage: 1000V
- Resistance: 20kohm
- Resistor Element Material: Wirewound
- Resolution %: 0.02%
- Rotation Electrical Angle: 3600°
- Rotation Mechanical Angle: 3600°
- Rotational Life Cycles: 1000000
- Temperature Coeff. +: 20ppm/°C
- Temperature Coeff. -: 20ppm/°C
