53D101F400JL6 Cap, 100µF, 400V, Alu Elec Vishay

VISHAYUGS :53D101F400JL6 Code de commande:1692364

Prix:
Prix ​​promotionnel€61,08

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (46 unité)

Documents et téléchargements

description

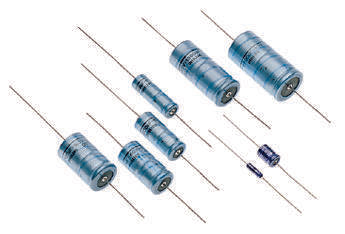

VISHAY - 53D101F400JL6 - Electrolytic Capacitor, Tubular, 100 µF, 400 V, -10%, +50%, Axial Leaded, 1000 hours @ 85°C, Polar

  • Capacitance: 100µF
  • Voltage Rating: 400V
  • Product Range: 53D Series
  • Capacitance Tolerance: +50%, -10%
  • Capacitor Terminals: Axial Leaded
  • Diameter: 25.7mm
  • Lead Spacing: -
  • Height: 54.4mm
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Lifetime @ Temperature: 1000 hours @ 85°C
  • ESR: 1.524ohm
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (27-Jun-2018)
  • AC Ripple Current @ 100Hz: 560mA
  • Capacitance Tolerance ±: +50%, -10%
  • Capacitor Mounting: Through Hole
  • External Length / Height: 54.4mm
  • Lead Diameter: 0.8mm
  • No. of Pins: 2Pins
  • Operating Temperature Range: -40°C to +85°C
  • Operating life Time: 1000h
  • Ripple Current Frequency: 120Hz
  • Ripple Current Temperature: 85°C
  • Tolerance +: 0.5%
  • Tolerance -: 0.1%
  • Voltage Rating DC Max: 400V
  • Voltage Rating V DC: 400V
