5472L SL005 Cable, 24AWG, LSZH, 2 Pair, 30.5m Alpha Wire

ALPHA WIREUGS :5472L SL005 Code de commande:1712528

Prix:
Prix ​​promotionnel€84,26

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (12 unité)

Documents et téléchargements

description

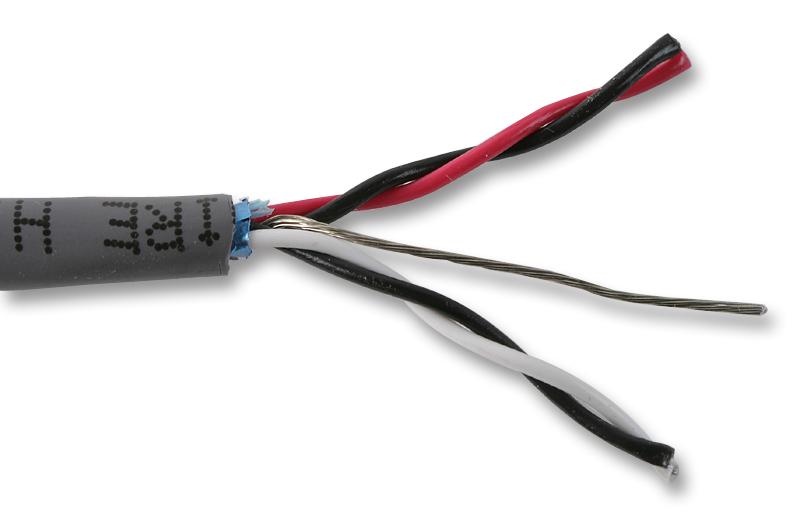

ALPHA WIRE - 5472L SL005 - Multipair Cable, Communication, Screened, 2 Pair, 24 AWG, 0.22 mm², 100 ft, 30.5 m

  • Cable Shielding: Screened
  • No. of Pairs: 2 Pair
  • Wire Gauge: 24AWG
  • Conductor Area CSA: 0.22mm²
  • Reel Length (Imperial): 100ft
  • Reel Length (Metric): 30.5m
  • Jacket Colour: Slate
  • No. of Max Strands x Strand Size: 7 x 0.2mm
  • Voltage Rating: 300V
  • Jacket Material: LSZH
  • Conductor Material: Tinned Copper
  • External Diameter: 5.31mm
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Cable Type: Foil Shield
  • Conductor Make-up: 7 / 32
  • No. of Cores: 4Core
  • Operating Temperature Max: 75°C
  • Operating Temperature Min: -20°C
  • Outer Diameter: 5.31mm
  • Wire Size: 24AWG
