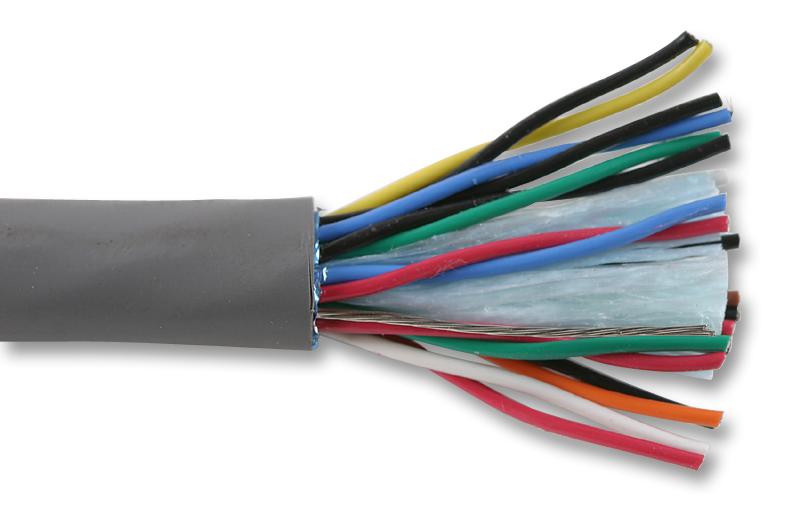

ALPHA WIRE - 5480C SL005 - Multipair Cable, Screened, 10 Pair, 24 AWG, 0.23 mm², 100 ft, 30.5 m
- Cable Shielding: Screened
- No. of Pairs: 10 Pair
- Wire Gauge: 24AWG
- Conductor Area CSA: 0.23mm²
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.5m
- Jacket Colour: Grey
- No. of Max Strands x Strand Size: 7 x 32AWG
- Voltage Rating: 300V
- Jacket Material: PVC
- Conductor Material: Tinned Copper
- External Diameter: 9.6mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Alpha Type Number: 5480C
- Approval Bodies: UL
- Belden Type Number: 9510 EQUIVALENT
- Cable Type: Foil Shield
- Cable UL Style Number: UL2464
- Complex Cable Make-Up: 20 x 7/0.2
- Conductor Make-up: 7 / 0.2mm
- Drain Wire Type: 24AWG stranded tinned copper
- No. of Cores: 20Core
- Operating Temperature Max: 75°C
- Operating Temperature Min: -20°C
- Outer Diameter: 9.6mm
- Screen Type Primary: Aluminum/polyester tape
- Secondary Insulation Colour: Grey
- Secondary Insulation Material: PVC
- Secondary Insulation Thickness: 1.02mm
- Voltage Rating VAC: 300V
- Wire Size: 24AWG
