551-0607F LED, Pcb, 3mm, Green DIALIGHT

DIALIGHTUGS :551-0607F Code de commande:1519379

Prix:
Prix ​​promotionnel€3,27

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (341 unité)

Documents et téléchargements

description

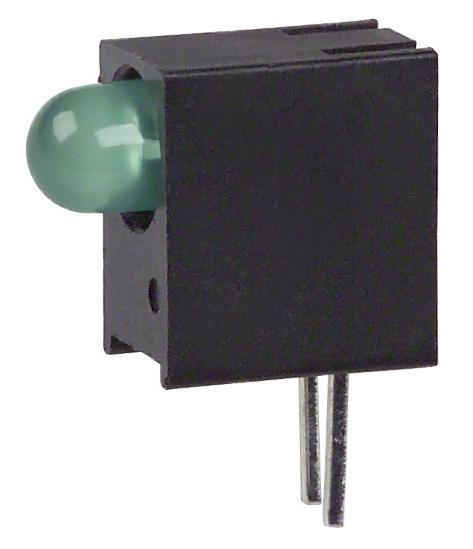

DIALIGHT - 551-0607F - Circuit Board Indicator, Green, 1 LEDs, Through Hole, T-1 (3mm), 10 mA, 19 mcd

  • LED Colour: Green
  • No. of LEDs: 1LEDs
  • LED Mounting: Through Hole
  • Bulb Size: T-1 (3mm)
  • Forward Current If: 10mA
  • Luminous Intensity: 19mcd
  • Forward Voltage: 5V
  • Viewing Angle: 60°
  • Height: 7.11mm
  • Width: 4.32mm
  • Product Range: -
  • SVHC: No SVHC (15-Jun-2015)
  • Forward Current If Max: 10mA
  • Forward Voltage VF Max: 5V
  • LED / Lamp Size: 3mm / T-1
  • LED Type: Standard
  • Lens Shape: Round
  • Luminous Intensity Typ: 19mcd
  • No. of Pins: 2Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
  • Peak Wavelength: 565nm
