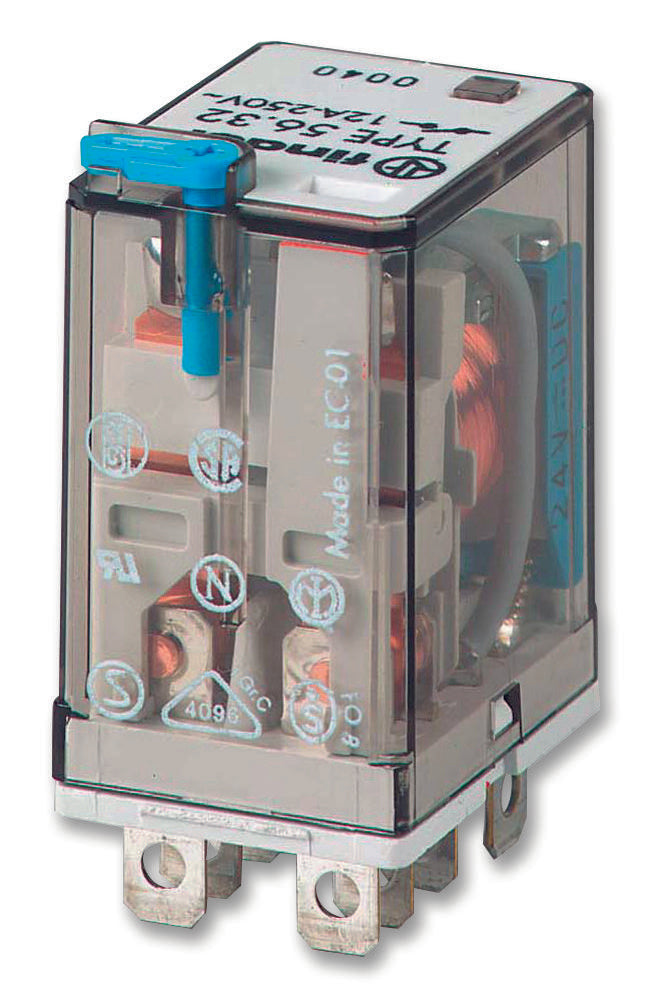

FINDER - 56.32.9.012.0000 - Power Relay, DPDT, 12 VDC, 12 A, 56 Series, Socket, DC
- Contact Configuration: DPDT
- Coil Voltage: 12VDC
- Contact Current: 12A
- Product Range: 56 Series
- Relay Mounting: Socket
- Coil Type: DC
- Contact Voltage VAC: 250VAC
- Relay Terminals: Quick Connect
- Contact Voltage VDC: 30V
- Contact Material: Silver Nickel
- Coil Resistance: 140ohm
- SVHC: No SVHC (15-Jan-2019)
- AC Coil Power: 1.5VA
- Approval Bodies: IMQ, SEMKO, SEV, UL, VDE
- Approvals & Standards: CE, CSA, UL, VDE
- Coil Current: 86mA
- Coil Operating Lower Percent Limit: 80%
- Coil Operating Upper Percent Limit: 110%
- Coil Voltage VDC Nom: 12V
- Contact Current AC Max: 12A
- Contact Current DC Max: 20A
- Contact Current Max: 20A
- Contact Voltage AC Max: 250V
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Max: 13.2V
- DC Coil Power: 1W
- External Depth: 35.5mm
- External Height: 27.6mm
- External Length / Height: 27.6mm
- External Width: 41mm
- Nom Operating Power: 1W
- Relay Type: Power - General Purpose
