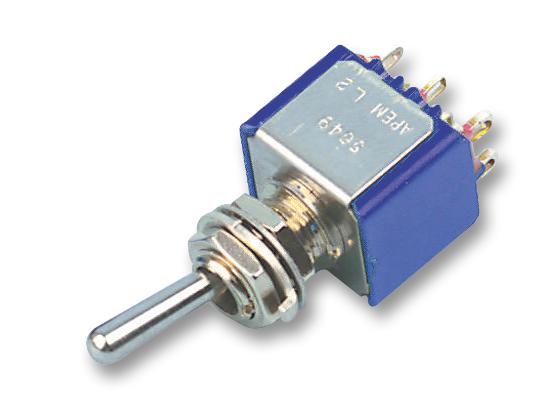

APEM - 5647AB - Toggle Switch, (On)-Off-(On), DPDT, Non Illuminated, 5000 Series, Panel Mount, 6 A
- Switch Operation: (On)-Off-(On)
- Contact Configuration: DPDT
- Illumination: Non Illuminated
- Product Range: 5000 Series
- Contact Current Max: 6A
- Switch Mounting: Panel
- Contact Voltage AC Nom: 125V
- Switch Terminals: Solder
- Contact Voltage DC Nom: -
- SVHC: No SVHC (15-Jan-2018)
- Bush Thread Length: 8mm
- Contact Current @ Contact Voltage AC Max: 3A
- Contact Current @ Contact Voltage DC Max: 4A
- Contact Resistance: 10mohm
- External Depth: 12mm
- External Length / Height: 21mm
- External Width: 13.2mm
- Height: 21mm
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Panel Cutout Diameter: 6.35mm
- Thread Size: 1/4 - 40UNS
