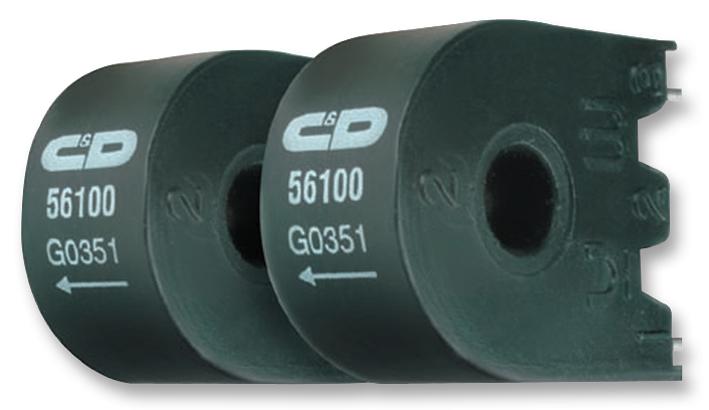

MURATA POWER SOLUTIONS - 56T100C - Current Sensing Transformer, 1:100CT, 37 mH, 10 A, 20kHz to 200kHz, 1.4 ohm
- TRANSFORMER, CURRENT SENSING, 100CT: 1
- Turns Ratio: 100
- DC Resistance: 1.4ohm
- Inductance: 37mH
- ET Constant: -
- Primary Current: 10A
- Transformer Mounting: Through Hole
- Product Range: -
- SVHC: No SVHC (07-Jul-2017)
- Core Diameter: 5mm
- External Depth: 8.89mm
- External Length / Height: 20.19mm
- External Width: 16.79mm
- Frequency Max: 200kHz
- Frequency Min: 20kHz
- Frequency Range: 20kHz to 200kHz
- Input Current: 10A
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Secondary Burden Resistance: 100ohm
- Transformer Type: Current
