description

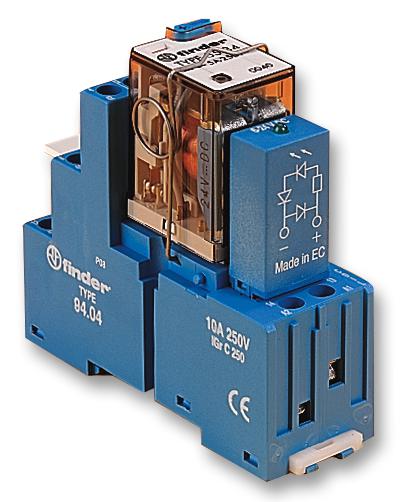

FINDER - 58.34.8.024.0060SMA - General Purpose Relay, 58 Series, Interface, 4PDT, 24 VAC, 7 A
- Contact Configuration: 4PDT
- Coil Voltage: 24VAC
- Contact Current: 7A
- Product Range: 58 Series
- Relay Mounting: DIN Rail
- Coil Type: AC
- Contact Voltage VAC: 250VAC
- Relay Terminals: Screw
- Contact Voltage VDC: 30V
- Contact Material: Silver Nickel
- Coil Resistance: 190ohm
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: BEAB, CSA, DEMKO, GOST, IMQ, NEMKO, SEMKO, SEV, UTE, VDE
- Average Power Consumption: 1.5VA
- Coil Operating Lower Percent Limit: 110%
- Coil Operating Upper Percent Limit: 80%
- Coil Voltage VAC Nom: 24V
- Contact Current AC Max: 7A
- Contact Current Max: 15A
- Contact Voltage AC Max: 250V
- Contact Voltage AC Nom: 250V
- Current Rating: 5A
- Dielectric Strength VDC: 2kV
- External Depth: 73mm
- External Height: 76mm
- External Length / Height: 76mm
- External Width: 27mm
- Operating Temperature Max: 70°C
- Operating Temperature Min: -40°C
- Output Voltage: 24V
- Relay Type: Interface
- Switch Current Max: 5A
- Switching Current Max: 5A
