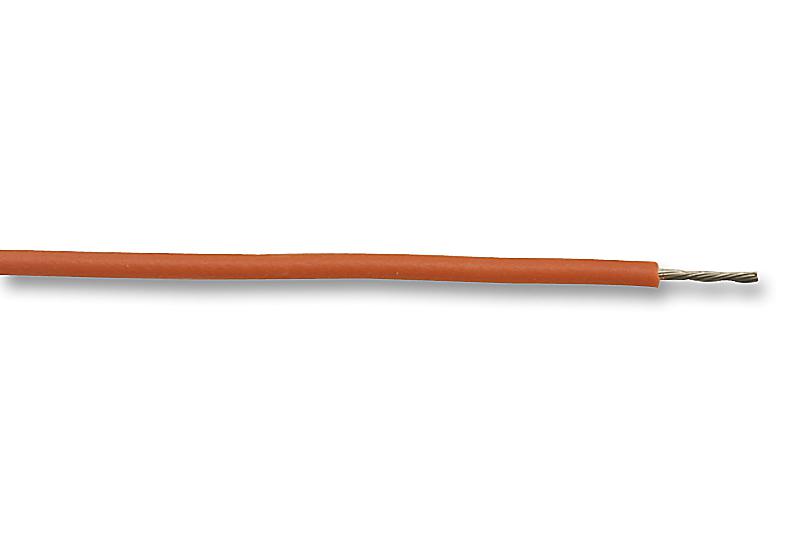

ALPHA WIRE - 5855 OR001 - Wire, Stranded, Hook Up, PTFE, Orange, 22 AWG, 0.385 mm², 1000 ft, 304.8 m
- Jacket Material: PTFE
- Jacket Colour: Orange
- Wire Gauge: 22AWG
- Conductor Area CSA: 0.385mm²
- Reel Length (Imperial): 1000ft
- Reel Length (Metric): 304.8m
- No. of Max Strands x Strand Size: 19 x 34AWG
- Voltage Rating: 600V
- Conductor Material: Copper
- External Diameter: 1.295mm
- Approval Specification: MIL-DTL-16878/4 (Type E), UL 1213
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Conductor Make-up: 19 / 34AWG
- Outer Diameter: 1.3mm
- Wire Size: 22AWG
