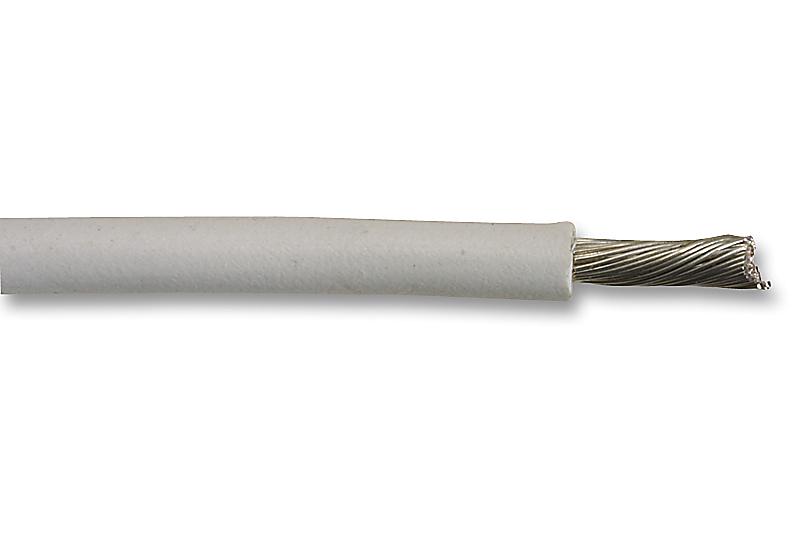

ALPHA WIRE - 5855 WH005 - Wire, Stranded, Hook Up, PTFE, White, 22 AWG, 0.38 mm², 100 ft, 30.5 m
- Jacket Material: PTFE
- Jacket Colour: White
- Wire Gauge: 22AWG
- Conductor Area CSA: 0.38mm²
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.5m
- No. of Max Strands x Strand Size: 19 x 34AWG
- Voltage Rating: 600V
- Conductor Material: Silver Plated Copper
- External Diameter: 1.27mm
- Approval Specification: MIL-DTL-16878/4 (Type E), UL 1213
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
