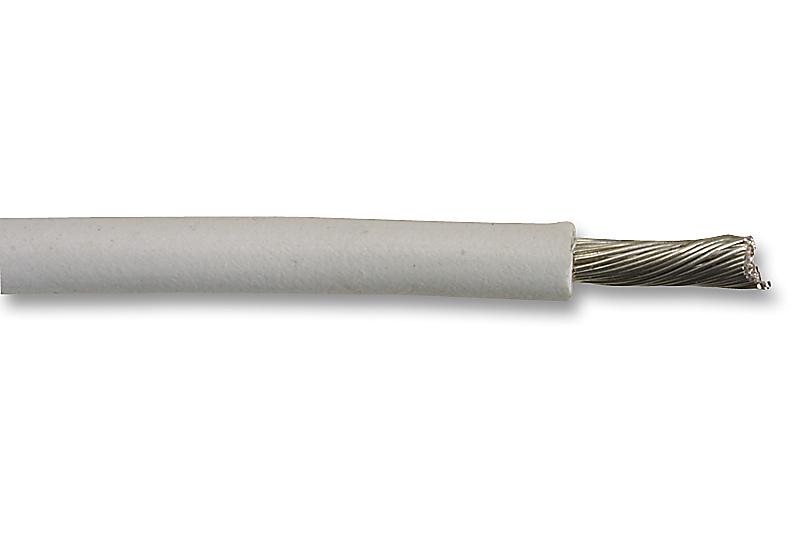

ALPHA WIRE - 5856 WH005 - Wire, Stranded, Hook Up, UL1213, PTFE, White, 20 AWG, 0.62 mm², 100 ft, 30.5 m
- Jacket Material: PTFE
- Jacket Colour: White
- Wire Gauge: 20AWG
- Conductor Area CSA: 0.62mm²
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.5m
- No. of Max Strands x Strand Size: 19 x 32AWG
- Voltage Rating: 600V
- Conductor Material: Silver Plated Copper
- External Diameter: 1.5mm
- Approval Specification: MIL-DTL-16878/4 (Type E), UL 1213
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Cable UL Style Number: UL1213
- Conductor Make-up: 19 / 32AWG
- Current Rating: 17A
- Operating Temperature Max: 200°C
- Operating Temperature Min: -60°C
- Outer Diameter: 1.5mm
- Secondary Insulation Colour: White
- Secondary Insulation Material: PTFE
- Voltage Rating VAC: 600V
- Wire Size: 20AWG
