description

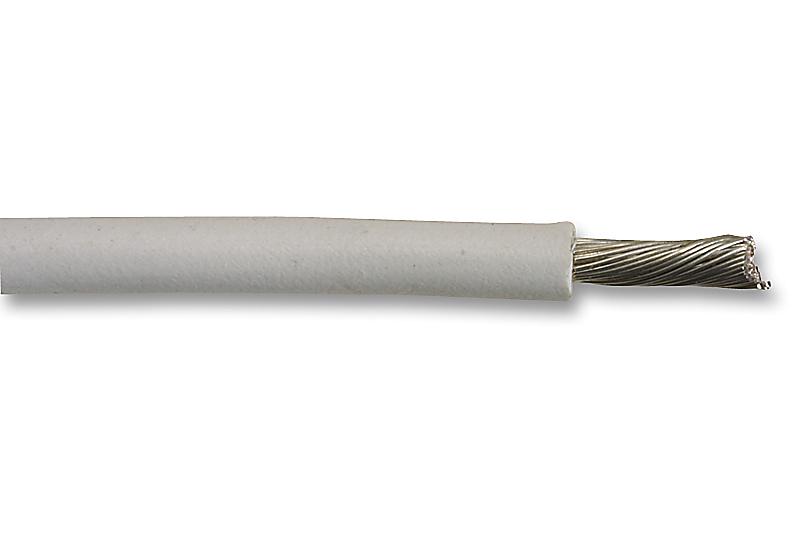

ALPHA WIRE - 5879/8 WH005. - Wire, Stranded, Hook Up, PTFE, White, 8 AWG, 8.536 mm², 100 ft, 30.5 m
- Jacket Material: PTFE
- Jacket Colour: White
- Wire Gauge: 8AWG
- Conductor Area CSA: 8.536mm²
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.5m
- No. of Max Strands x Strand Size: 133 x 0.286mm
- Voltage Rating: 1kV
- Conductor Material: Copper
- External Diameter: 5.23mm
- Approval Specification: MIL-DTL-16878/5 (TYPE EE)
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Outer Diameter: 5.23mm
