59-512 Switch, SPST-NO, Mom, 0.4A, 32VAC, Panel ITW Switches

ITW SWITCHESUGS :59-512 Code de commande:4434407

Prix:
Prix ​​promotionnel€15,10

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (43 unité)

Documents et téléchargements

description

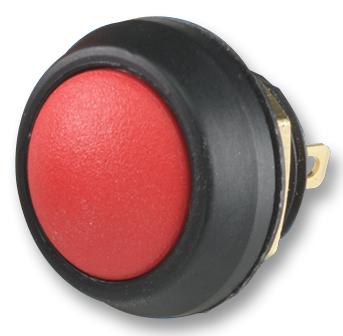

ITW SWITCHES - 59-512 - Industrial Pushbutton Switch, 59, 13.6 mm, SPST-NO-DB, Momentary, Round, Red

  • Switch Operation: Momentary
  • Contact Configuration: SPST-NO-DB
  • Contact Voltage AC Nom: 50V
  • Contact Voltage DC Nom: -
  • Contact Current Max: 400mA
  • Switch Terminals: Solder Lug
  • Product Range: 59 Series
  • SVHC: No SVHC (17-Dec-2015)
  • Actuator / Cap Colour: Red
  • Contact Current @ Contact Voltage AC Max: 125mA
  • Contact Current AC Max: 400mA
  • Contact Current DC Max: 100mA
  • Contact Resistance: 50mohm
  • Contact Voltage AC Max: 125V
  • Contact Voltage AC Min: 32V
  • Contact Voltage VAC: 32V
  • Contact Voltage VDC: 50V
  • IP Rating: IP67
  • Illumination Colour: Non-illuminated
  • Panel Cutout Diameter: 13.6mm
  • Pushbutton Actuator Style: Round
  • Pushbutton Switch Type: Industrial
  • Switch Mounting: Panel
