59135-1-S-02-A Reed Sensor, HI Temp, Flange, NO LITTELFUSE

LITTELFUSEUGS :59135-1-S-02-A Code de commande:5541104

Prix:
Prix ​​promotionnel€7,94

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1366 unité)

Documents et téléchargements

description

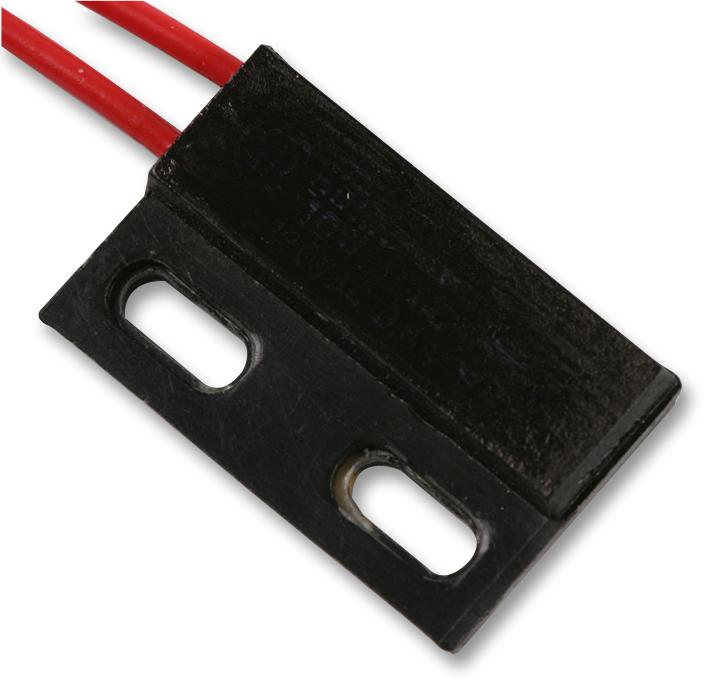

LITTELFUSE - 59135-1-S-02-A - Proximity Reed Sensor, 23 mm, 1NO, Flange Mount, 59135 Series

  • Sensing Range Max: 19mm
  • Sensor Mounting: -
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 105°C
  • Supply Current: 500mA
  • Product Range: 59135 Series
  • Breakover Voltage Min: 250VDC
  • Contact Configuration: 1NO
  • Current Load AC Max: 1.2A
  • External Depth: 6.35mm
  • External Length / Height: 28.57mm
  • External Width: 19.05mm
  • Fixing Centres: 15.88mm
  • Lead Length: 300mm
  • Operating Temperature Range: -40°C to +105°C
  • Output Power Max: 10W
  • Power Rating: 10W
  • Sensing Distance Max: 19mm
  • Sensing Range: 12mm to 18mm
  • Sensor Input: Magnetic
  • Supply Voltage DC Max: 200V
  • Switching Current AC Max: 0.5A
  • Switching Power Max: 10W
  • Switching Voltage: 200VDC
  • Switching Voltage DC: 200
