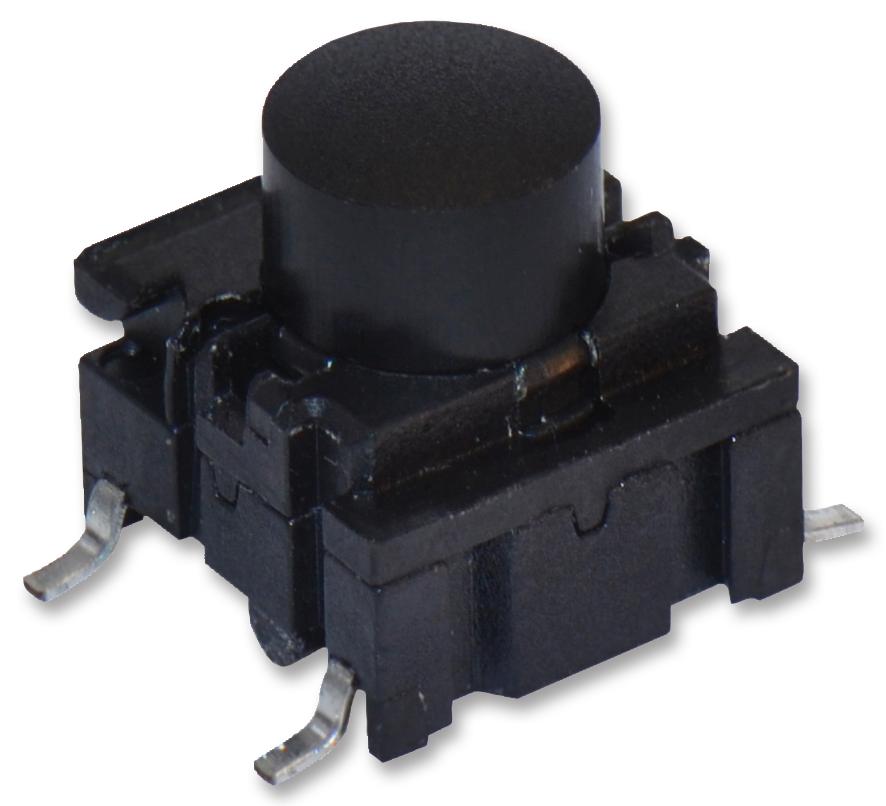

MULTIMEC - 5GSH935+1SS09-10.4 - Tactile Switch, Multimec 5G Series, Top Actuated, Surface Mount, Plunger for Cap, 350 gf
- Product Range: Multimec 5G Series
- Actuator Orientation: Top Actuated
- Switch Mounting: SMD
- Actuator Style: Plunger for Cap
- Actuating Force: 350gf
- Contact Rating: 50mA at 24VDC
- Switch Dimensions (L x W): 10mm x 10mm
- IP Rating: IP67
- Illumination: Non Illuminated
- SVHC: No SVHC (15-Jun-2015)
- Actuation Type: Top
- Contact Configuration: SPST-NO
- Contact Current Max: 50mA
- Contact Voltage DC Nom: 24V
- Operating Force: 3.5N
- Switch Terminals: Solder
