5KP30A-e3/54 Diode, TVs, 5kW, 30V, UNIDIR, P600 Vishay

VISHAYUGS :5KP30A-E3/54 Code de commande:1698855

Prix:
Prix ​​promotionnel€4,11

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (585 unité)

Documents et téléchargements

description

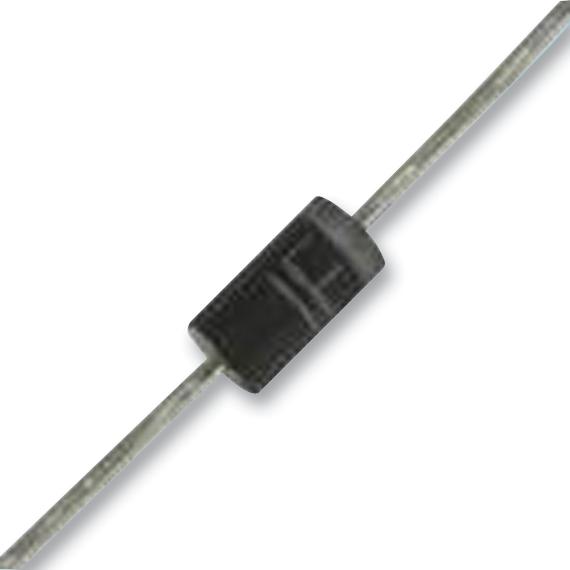

VISHAY - 5KP30A-E3/54 - TVS Diode, TRANSZORB 5KP, Unidirectional, 30 V, 48.4 V, P600, 2 Pins

  • Product Range: TRANSZORB 5KP Series
  • TVS Polarity: Unidirectional
  • Reverse Stand-Off Voltage Vrwm: 30V
  • Clamping Voltage Vc Max: 48.4V
  • Diode Case Style: P600
  • No. of Pins: 2Pins
  • Breakdown Voltage Min: 33.3V
  • Breakdown Voltage Max: 36.8V
  • Peak Pulse Power Dissipation: 5kW
  • Automotive Qualification Standard: -
  • SVHC: Lead (27-Jun-2018)
  • Breakdown Voltage: 36.8V
  • Breakdown Voltage Range: 33.3V to 36.8V
  • Breakover Voltage Min: 33.3V
  • Diode Type: Unidirectional TVS
  • Operating Temperature Max: 175°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +175°C
  • Peak Pulse Current Ippm: 103A
  • Power Dissipation Pd: 8W
  • Stand-off Voltage: 30V
  • Termination Type: Axial Leaded
  • Test Current: 5mA
  • Time Measured: 50ms
