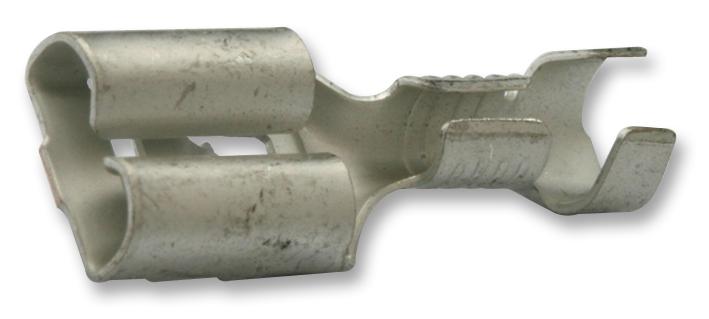

AMP - TE CONNECTIVITY - 6-160449-2 - Quick Disconnect Terminal, FASTIN-ON 250, Female Quick Disconnect, 6.35mm x 0.81mm, 0.25" x 0.032"
- Product Range: FASTIN-ON 250 Series
- Terminal Type: Female Quick Disconnect
- Tab Size - Metric: 6.35mm x 0.81mm
- Tab Size - Imperial: 0.25" x 0.032"
- Wire Size AWG Min: 17AWG
- Wire Size AWG Max: 13AWG
- Insulator Colour: -
- Conductor Area CSA: 2.5mm²
- Insulator Material: Uninsulated
- Terminal Material: Phosphor Bronze
- SVHC: No SVHC (15-Jan-2019)
- Contact Material: Phosphor Bronze
- Contact Plating: Tin Plated Contacts
- Gender: Receptacle
- Termination Method: Crimp
