61400826021 USB Stacked, 2.0 Type A, 2PORT, Vertical Wurth Elektronik

WURTH ELEKTRONIKUGS :61400826021 Code de commande:1642034

Prix:
Prix ​​promotionnel€3,83

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1197 unité)

Documents et téléchargements

description

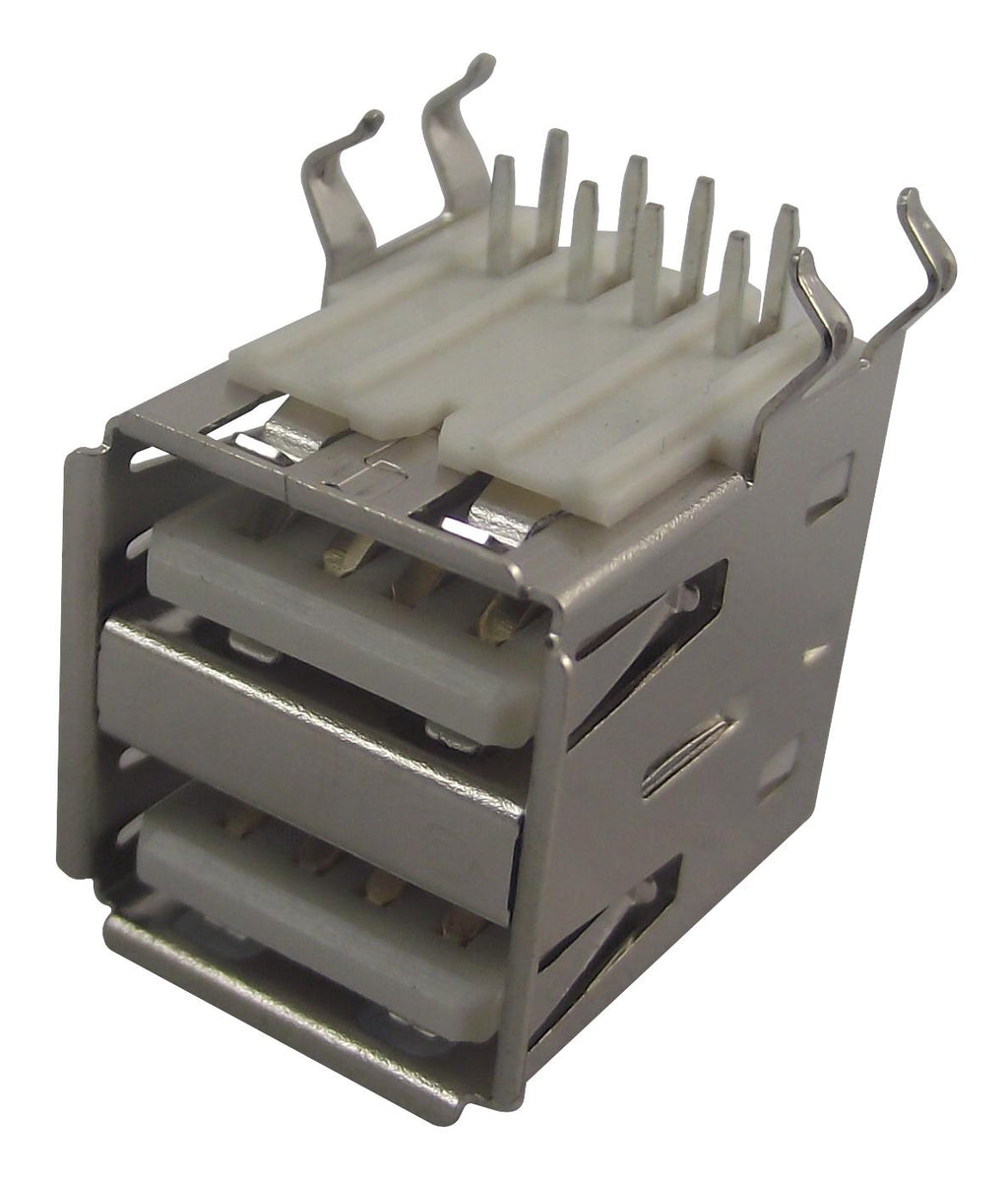

WURTH ELEKTRONIK - 61400826021 - USB Stacked Connector, USB Type A, USB 2.0, 8 Ways, Horizontal, Copper Alloy

  • USB Connector Type: USB Type A
  • USB Standard: USB 2.0
  • No. of Positions: 8Ways
  • Orientation: Vertical
  • Contact Material: Copper Alloy
  • Contact Plating: Gold Plated Contacts
  • Product Range: WR-COM Series
  • SVHC: No SVHC (15-Jan-2019)
  • Connector Mounting: PCB Mount
  • Connector Mounting Orientation: Through Hole
  • Connector Type: USB A
  • Contact Resistance: 20mohm
  • Contact Termination: Solder
  • Contact Termination Type: Solder
  • Current Rating: 1A
  • Flammability Rating: UL94V-0
  • Gender: Receptacle
  • Insulation Resistance: 1000Mohm
  • No. of Contacts: 4Contacts
  • No. of Mating Cycles: 1500
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -40°C
  • Termination Method: Solder
  • Withstand Voltage: 750V
  • Working Voltage: 30V
