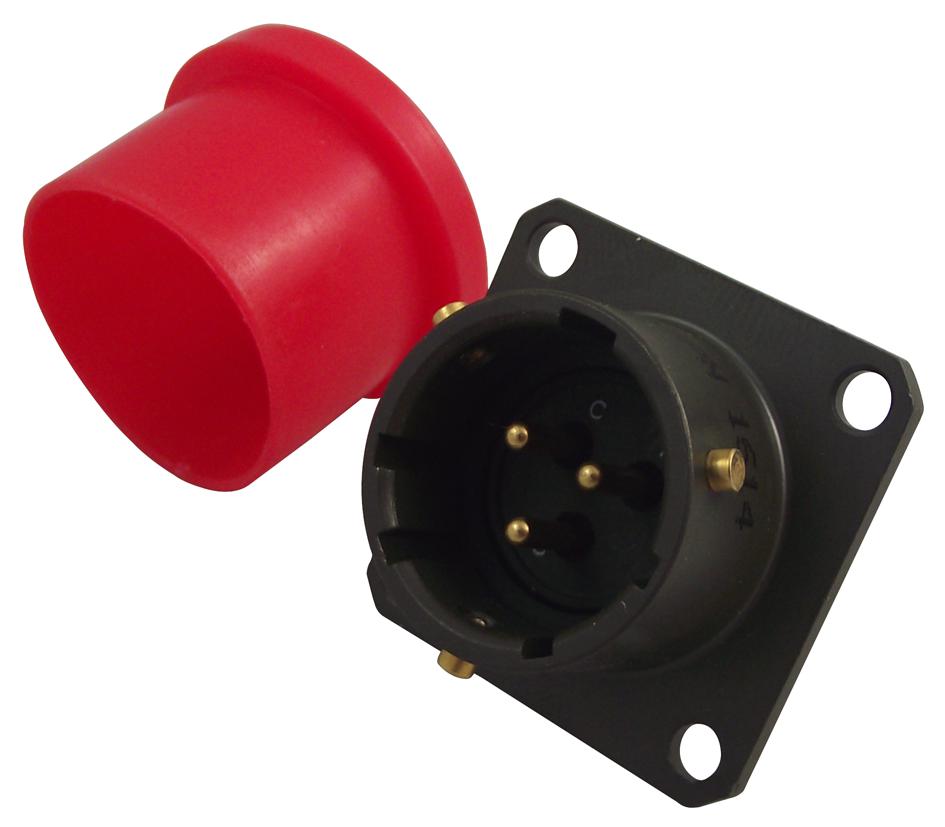

62GB-12E12-03PN Plug,12-03 Panel Mount, 3WAY Amphenol Ltd

AMPHENOL LTDUGS :62GB-12E12-03PN Code de commande:3911275

Prix:
Prix ​​promotionnel€49,41

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (18 unité)

Documents et téléchargements

description

AMPHENOL LTD - 62GB-12E12-03PN - Circular Connector, 62GB, Box Mount Receptacle, 3 Contacts, Solder Pin, Bayonet, 12-3

  • Product Range: 62GB Series
  • Circular Connector Shell Style: Box Mount Receptacle
  • No. of Contacts: 3Contacts
  • Circular Contact Type: Solder Pin
  • Coupling Style: Bayonet
  • Insert Arrangement: 12-3
  • Connector Body Material: Aluminium Alloy Body
  • Connector Body Plating: Olive Drab Zinc
  • Contact Material: Copper Alloy
  • Contact Plating: Gold
  • Insert Rotation: N
  • Service Class: Environmentally Sealed
  • Equivalent Military Specification: MIL-DTL-26482 Series
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Category: MIL-C-26482
  • Colour: Olive Drab
  • Contact Resistance: 5mohm
  • Current Rating: 13A
  • Current per Contact Max: 13A
  • IP / NEMA Rating: IP67
  • Insulation Resistance: 5000Mohm
  • Moulding Material: Aluminium Alloy
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Proof Voltage: 2100VDC
  • Size: 16
  • Voltage Rating VAC: 500V
  • Working Voltage: 700VDC
