636NH/2 Switch, SPDT Apem

APEMUGS :636NH/2 Code de commande:1082327

Prix:
Prix ​​promotionnel€12,94

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (315 unité)

Documents et téléchargements

description

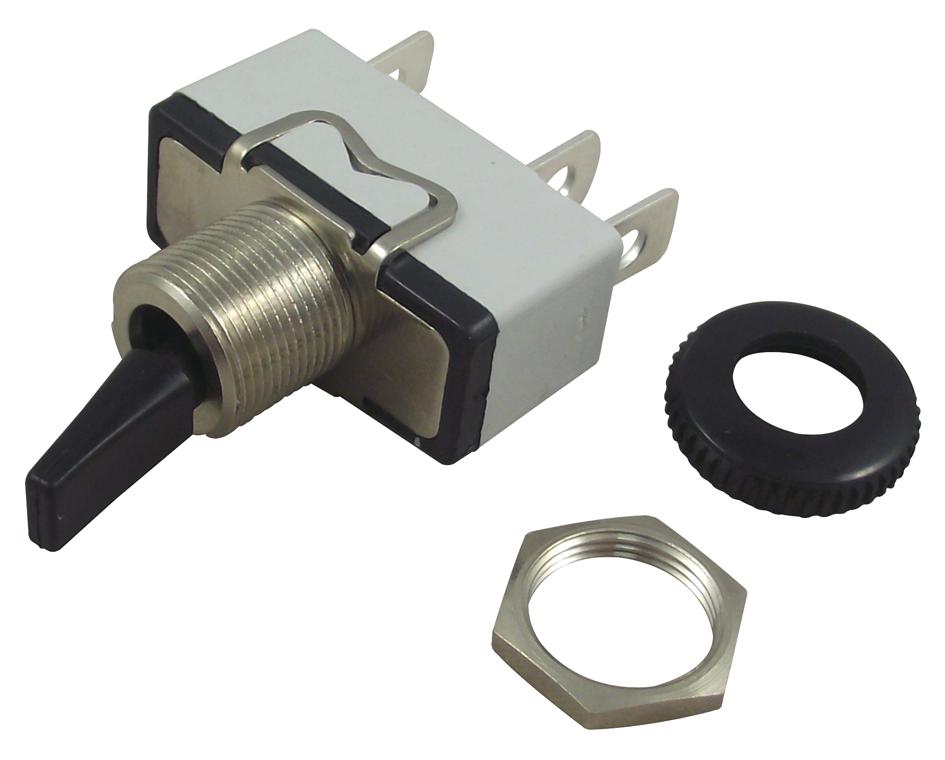

APEM - 636NH/2 - Toggle Switch, On-On, SPDT, Non Illuminated, 600, Panel Mount, 15 A

  • Switch Operation: On-On
  • Contact Configuration: SPDT
  • Illumination: Non Illuminated
  • Product Range: 600 Series
  • Contact Current Max: 15A
  • Switch Mounting: Panel
  • Contact Voltage AC Nom: 250V
  • Switch Terminals: Quick Connect, Solder
  • Contact Voltage DC Nom: 24V
  • SVHC: No SVHC (15-Jan-2018)
  • Actuation Type: Flat Lever
  • Approval Bodies: CSA, UL
  • Bush Thread Length: 11.5mm
  • Contact Current @ Contact Voltage AC Max: 15A
  • Contact Current @ Contact Voltage DC Max: 10A
  • Contact Current AC Max: 15A
  • Contact Current DC Max: 10A
  • Contact Current Rating: 15A
  • Contact Resistance: 10mohm
  • Contact Voltage AC Max: 250V
  • Contact Voltage DC Max: 24V
  • External Depth: 29.5mm
  • External Length / Height: 15mm
  • External Width: 14mm
  • Height: 15mm
  • Insulation Resistance: 1000Mohm
  • Lever Length: 13.5mm
  • No. of Electrical Operations: 10000
  • Operating Temperature Max: 55°C
  • Operating Temperature Min: -20°C
  • Proof Voltage: 2500V
  • Tab Blade Thickness: 0.8mm
  • Tab Width: 6.35mm
  • Thread Size: 12X0.75SI
