6425.0101 Pushbutton Switch, 1 Contact MARQUARDT

MARQUARDTUGS :6425.0101 Code de commande:1831117

Prix:
Prix ​​promotionnel€10,45

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (745 unité)

Documents et téléchargements

description

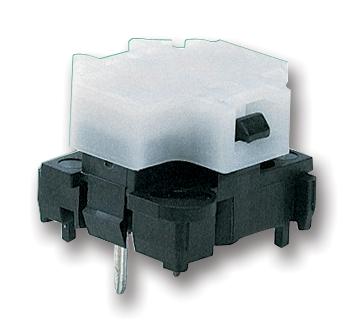

MARQUARDT - 6425.0101 - Tactile Switch, 6425, Top Actuated, Through Hole, Plunger for Cap, 70 gf, 100mA at 28VDC

  • Product Range: 6425 Series
  • Actuator Orientation: Top Actuated
  • Switch Mounting: Through Hole
  • Actuator Style: Plunger for Cap
  • Actuating Force: 70gf
  • Contact Rating: 100mA at 28VDC
  • Switch Dimensions (L x W): 14.4mm x 14.4mm
  • IP Rating: -
  • Illumination: Non Illuminated
  • SVHC: No SVHC (15-Jun-2015)
  • Actuation Type: Top
  • Colour: Black / White
  • Contact Configuration: SPST-NO
  • Contact Current AC Max: 6A
  • Contact Current DC Max: 100mA
  • Contact Current Max: 100mA
  • Contact Resistance: 250mohm
  • Contact Voltage DC Max: 28V
  • Contact Voltage DC Nom: 28V
  • External Depth: 10.7mm
  • External Length / Height: 14.4mm
  • External Width: 14.4mm
  • Insulation Resistance: 100Mohm
  • Operating Force: 0.7N
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: 20°C
  • Panel Cutout Width: 14.5mm
  • Panel Cutout length: 14.5mm
  • Switch Operation: Off-On
