66 30 226 003600 Hood + Male Insert, Top Entry, 16e Harting

HARTINGUGS :66 30 226 003600 Code de commande:9637419

Prix:
Prix ​​promotionnel€46,07

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Seulement 3 produits disponibles

Documents et téléchargements

description

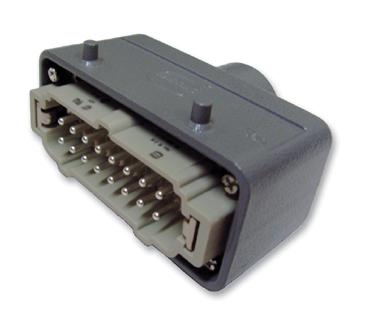

HARTING - 66 30 226 003600 - Heavy Duty Connector, Top Entry, Han Series, Cable Mount, Plug, 16 Contacts, Pin, 2 Rows

  • Product Range: Han Series
  • Connector Mounting: Cable Mount
  • Gender: Plug
  • No. of Contacts: 16Contacts
  • Contact Gender: Pin
  • No. of Rows: 2Rows
  • Contact Termination Type: Screw
  • Connector Shell Size: 16E
  • Contact Material: Copper
  • Contact Plating: -
  • SVHC: No SVHC (15-Jan-2018)
  • Conduit Thread Size: 25
  • Connector Type: Rectangular Power
  • Contact Resistance: 1mohm
  • Contact Termination: Screw
  • Current Rating: 16A
  • IP / NEMA Rating: IP65
  • Material: Die Cast Aluminium
  • No. of Mating Cycles: 500
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -40°C
  • Termination Method: Screw
  • Voltage Rating VAC: 600V
  • Wire Area Size Max: 2.5mm²
  • Wire Area Size Min: 1mm²
  • Wire Size AWG Max: 12AWG
  • Wire Size AWG Min: 20AWG
  • Working Voltage: 400V
