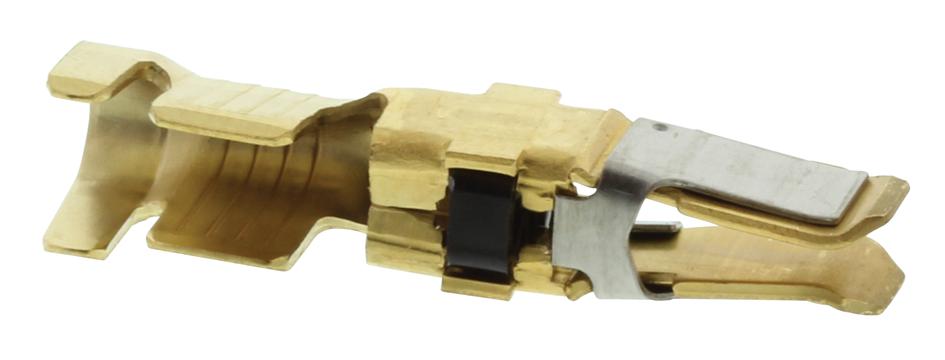

66741-6 Crimp Socket, 10-8AWG Amp - Te Connectivity

AMP - TE CONNECTIVITYUGS :66741-6 Code de commande:1458899

Prix:
Prix ​​promotionnel€25,35

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1935 unité)

Documents et téléchargements

description

AMP - TE CONNECTIVITY - 66741-6 - Contact, Multimate, Multimate XII, Socket, Crimp, 10 AWG, Gold Plated Contacts

  • Product Range: CPC Series
  • Contact Gender: Socket
  • Contact Termination Type: Crimp
  • Wire Size AWG Max: 10AWG
  • Contact Plating: Gold Plated Contacts
  • For Use With: Type XII Series Connectors
  • Wire Size AWG Min: 10AWG
  • Contact Material: Copper
  • SVHC: No SVHC (07-Jul-2017)
  • Cable Diameter Max: 5.59mm
  • Cable Diameter Min: 4.83mm
  • Colour: Gold
  • Contact Termination: Crimp
  • Current Rating: 25A
  • Gender: Receptacle
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -55°C
  • Wire Area Size Max: 8.3mm²
  • Wire Area Size Min: 4.5mm²
  • Wire Size: 10AWG
  • Wire Size (AWG): 10AWG
