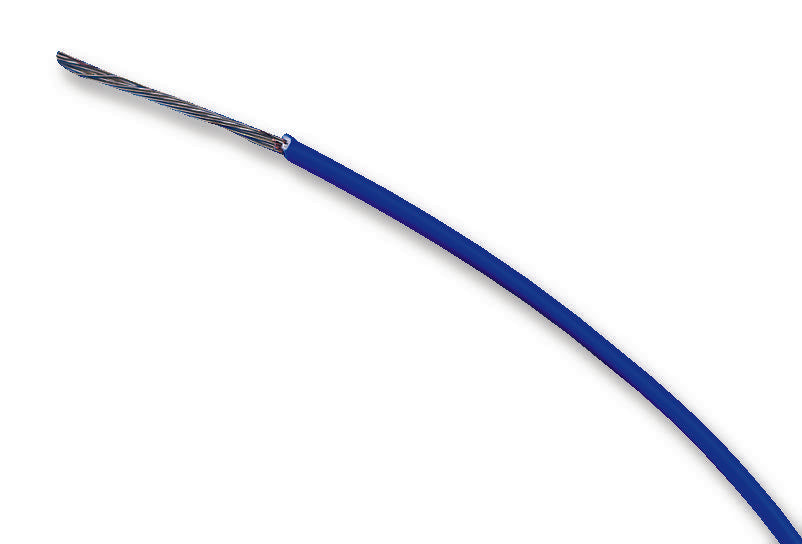

ALPHA WIRE - 6714 BL001 - Wire, MPPE, Blue, 20 AWG, 0.52 mm², 1000 ft, 305 m
- Jacket Material: MPPE
- Jacket Colour: Blue
- Wire Gauge: 20AWG
- Conductor Area CSA: 0.52mm²
- Reel Length (Imperial): 1000ft
- Reel Length (Metric): 305m
- No. of Max Strands x Strand Size: 10 x 30AWG
- Voltage Rating: 600V
- Conductor Material: Tinned Copper
- External Diameter: 1.4mm
- Approval Specification: CE, CSA AWM I A/B FT1, UL 11028 VW-1
- Product Range: EcoWire Series
- SVHC: No SVHC (15-Jan-2019)
- Conductor Make-up: 10 / 30AWG
- Current Rating: 10A
- Operating Temperature Max: 105°C
- Operating Temperature Min: -40°C
- Outer Diameter: 1.4mm
- Wire Size: 20AWG
