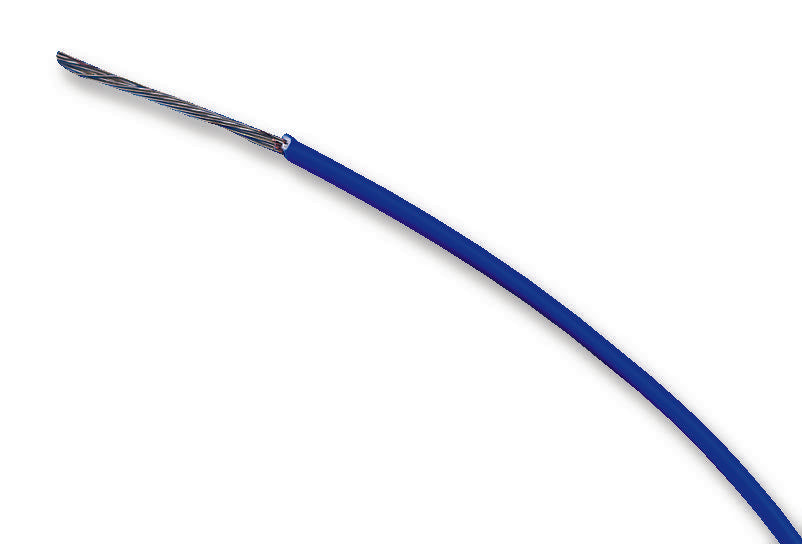

ALPHA WIRE - 6719 BL005 - Wire, Stranded, Hook Up, EcoWire®, UL11028, MPPE, Blue, 10 AWG, 5.26 mm², 100 ft, 30.5 m
- Jacket Material: MPPE
- Jacket Colour: Blue
- Wire Gauge: 10AWG
- Conductor Area CSA: 5.26mm²
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.5m
- No. of Max Strands x Strand Size: 105 x 30AWG
- Voltage Rating: 600V
- Conductor Material: Tinned Copper
- External Diameter: 3.66mm
- Approval Specification: CE, CSA AWM I A/B FT1, UL 11028 VW-1
- Product Range: EcoWire Series
- SVHC: No SVHC (15-Jan-2019)
- Conductor Make-up: 105 / 30AWG
- Current Rating: 47A
- Operating Temperature Max: 105°C
- Operating Temperature Min: -40°C
- Outer Diameter: 3.66mm
- Wire Size: 10AWG
