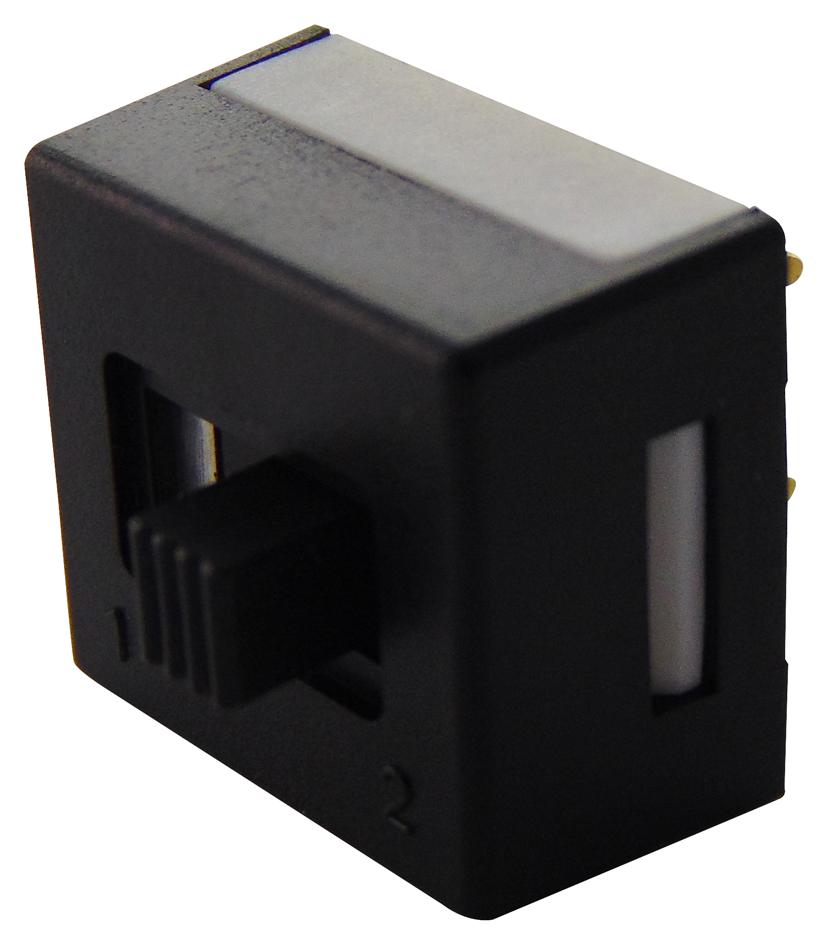

6MD1S2M2RE Switch, Slide, DPDT, On-On multicomp Pro

MULTICOMP PROUGS :6MD1S2M2RE Code de commande:1550247

Prix:
Prix ​​promotionnel€3,99

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (125 unité)

Documents et téléchargements

description

MULTICOMP PRO - 6MD1S2M2RE - Slide Switch, DPDT, On-On, Through Hole, 6MD1, 100 mA, 20 V

  • Contact Configuration: DPDT
  • Switch Operation: On-On
  • Switch Mounting: Through Hole
  • Product Range: 6MD1 Series
  • Contact Current Max: 100mA
  • Contact Voltage AC Max: 20V
  • Contact Voltage DC Max: 20V
  • Orientation: Vertical
  • SVHC: No SVHC (15-Jan-2018)
  • Actuation Type: Raised
  • Actuator Type: Raised Slide
  • Contact Current AC Max: 20mA
  • Contact Current DC Max: 20mA
  • Contact Voltage AC Min: 20mV
  • Contact Voltage DC Min: 20mV
  • External Depth: 12.8mm
  • External Length / Height: 7.7mm
  • External Width: 14mm
  • Insulation Resistance: 1000Mohm
  • Lever Length: 2.8mm
  • Switching Current AC Min: 10mA
  • Switching Current DC Min: 10mA
  • Termination Method: Through Hole
