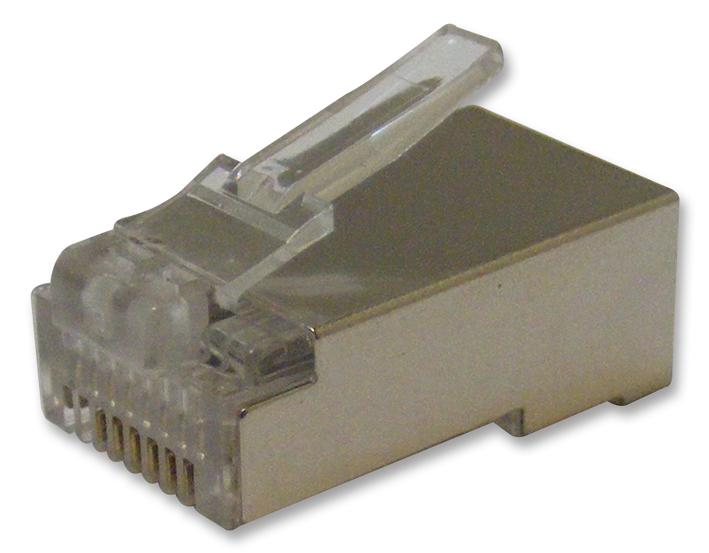

7001-8P8C-R-M Plug, RJ45, 8P8C, Shielded, Round multicomp Pro

MULTICOMP PROUGS :7001-8P8C-R-M Code de commande:1712389

Prix:
Prix ​​promotionnel€1,00

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (10396 unité)

Documents et téléchargements

description

MULTICOMP PRO - 7001-8P8C-R-M - Modular Connector, RJ45 Plug, 1 x 1 (Port), 8P8C, Cable Mount

  • Modular Connector Type: RJ45 Plug
  • Port Configuration: 1 x 1 Port
  • No. of Positions / Loaded Contacts (per Port): 8P8C
  • LAN Category: -
  • IP Rating: -
  • Connector Mounting: Cable Mount
  • Connector Orientation: Vertical
  • Shielding: Shielded
  • Magnetics: Without Magnetics
  • LEDs: Without LED
  • Light Pipes: Without Light Pipe
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Connector Type: RJ45
  • Contact Material: Phosphor Bronze
  • Contact Plating: Gold Plated Contacts
  • Contact Resistance: 20mohm
  • Contact Termination: IDC / IDT
  • Contact Termination Type: IDC / IDT
  • Current Rating: 1A
  • Flammability Rating: UL94V-2
  • Gender: Plug
  • Insulation Resistance: 1000Mohm
  • No. of Contacts: 8Contacts
  • No. of Ports: 1Ports
  • No. of Positions: 8Ways
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -40°C
  • Voltage Rating VAC: 150V
  • Withstand Voltage: 500V
