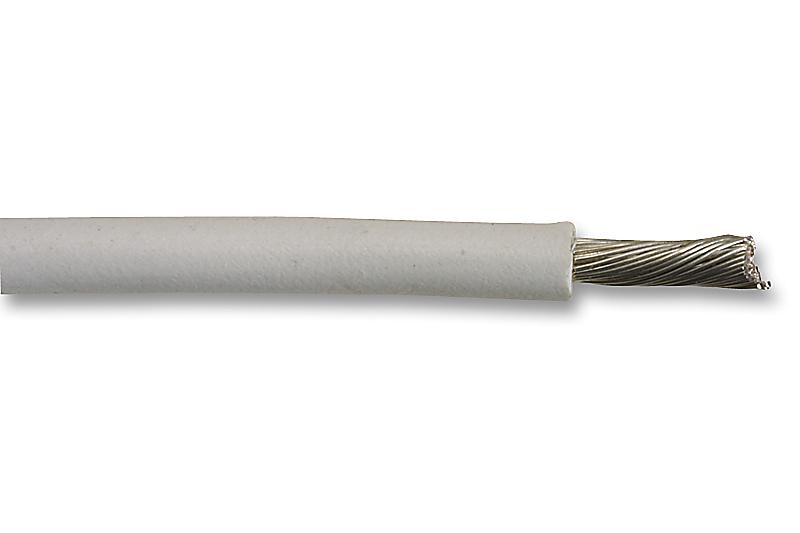

ALPHA WIRE - 7055 WH005 - Wire, Stranded, Hook Up, PVC, White, 22 AWG, 0.357 mm², 100 ft, 30.5 m
- Jacket Material: PVC
- Jacket Colour: White
- Wire Gauge: 22AWG
- Conductor Area CSA: 0.357mm²
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.5m
- No. of Max Strands x Strand Size: 7 x 30AWG
- Voltage Rating: 150V
- Conductor Material: Copper
- External Diameter: 1.27mm
- Approval Specification: MIL-DTL-16878/1 (Type B), CSA AWM I A/B FT1, UL 1429
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Conductor Make-up: 7 / 30AWG
- Outer Diameter: 1.3mm
- Wire Size: 22AWG
