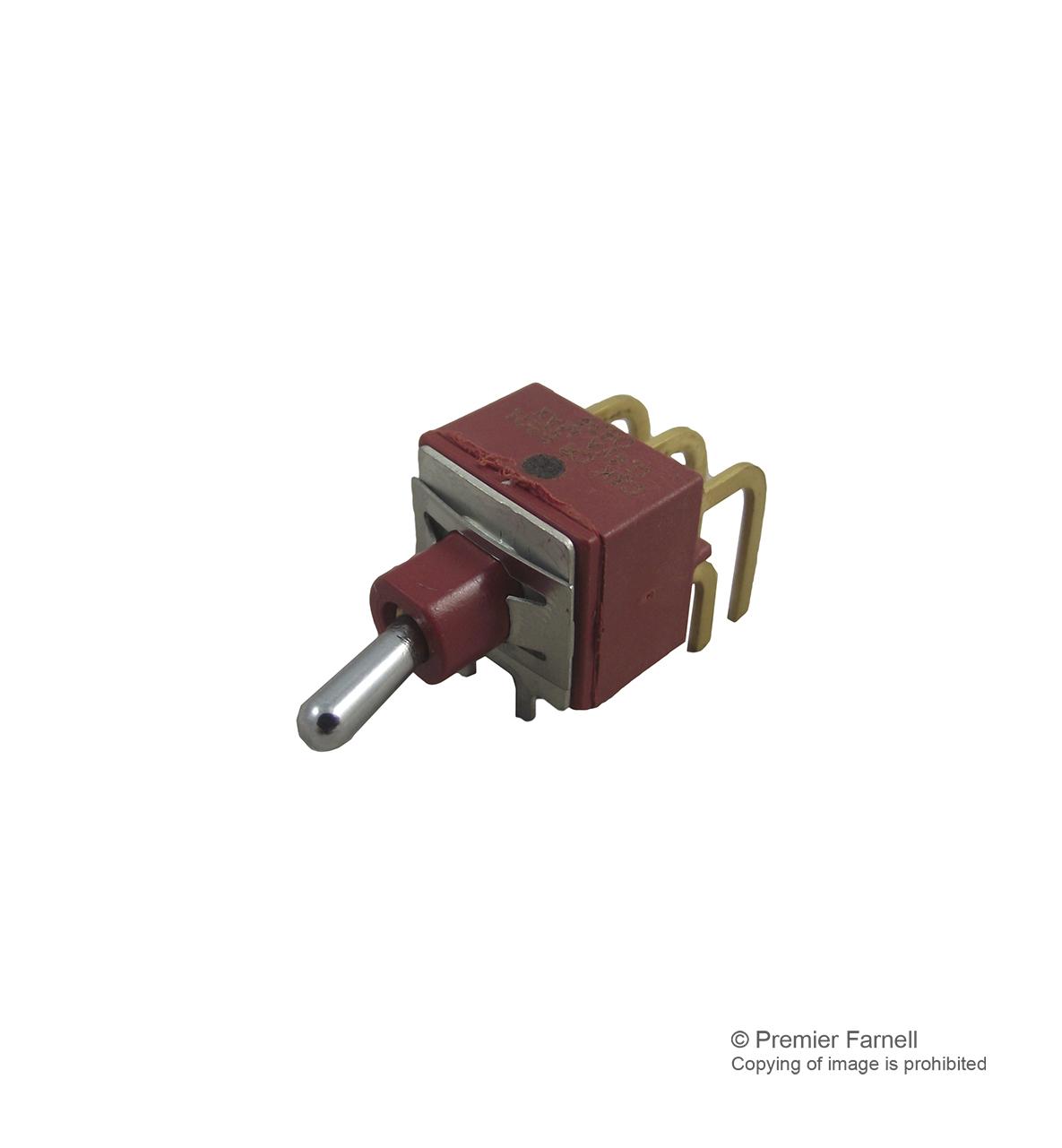

7101MD9ABE Switch, Pcb, SPDT C&K Components

C&K COMPONENTS - 7101MD9ABE - Toggle Switch, On-None-On, SPDT, Non Illuminated, 7000, Through Hole, 5 A

• Switch Operation: On-On
• Contact Configuration: SPDT
• Illumination: Non Illuminated
• Product Range: 7000 Series
• Contact Current Max: 5A
• Switch Mounting: Through Hole
• Contact Voltage AC Nom: 20V
• Switch Terminals: Solder
• Contact Voltage DC Nom: 20V
• SVHC: Lead (15-Jan-2019)
• Actuation Type: Bat
• Bush Diameter: 6.22mm
• Bush Thread Length: 7.31mm
• Contact Resistance: 10mohm
• Contact Voltage AC Max: 20V
• Contact Voltage DC Max: 20V
• External Depth: 12.7mm
• External Length / Height: 6.86mm
• External Width: 12.7mm
• Height: 6.86mm
• Lever Length: 7mm
• No. of Mechanical Operations: 40000
• Operating Temperature Max: 65°C
• Operating Temperature Min: -20°C
• Switching Power Max: 0.4VA
• Thread Size: 1/4 - 40
