7101MD9V3BE Switch, Pcb, SPDT C&K Components

C&K COMPONENTSUGS :7101MD9V3BE Code de commande:9574743

Prix:
Prix ​​promotionnel€16,53

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (70 unité)

Documents et téléchargements

description

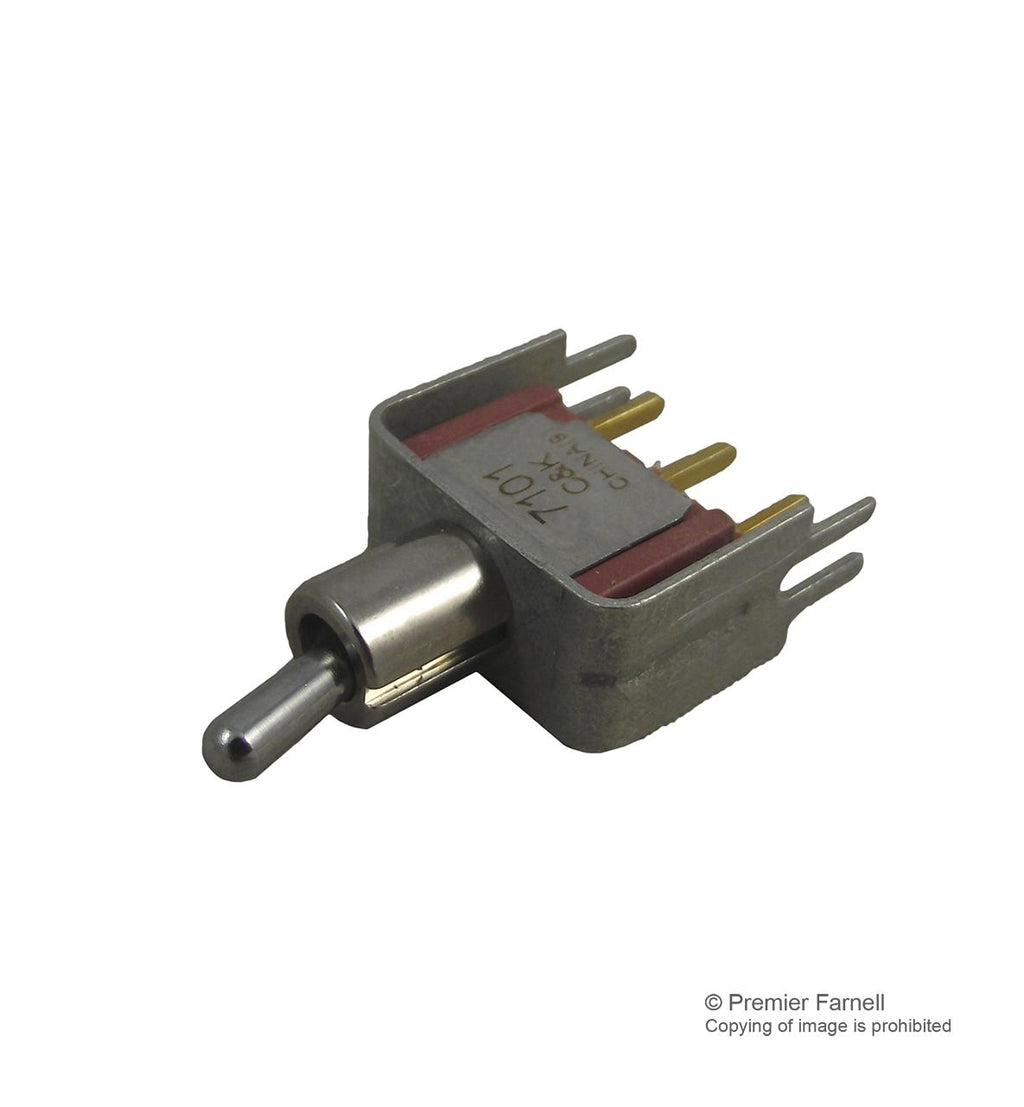

C&K COMPONENTS - 7101MD9V3BE - Toggle Switch, On-None-On, SPDT, Non Illuminated, 7000, Through Hole, 5 A

  • Switch Operation: On-On
  • Contact Configuration: SPDT
  • Illumination: Non Illuminated
  • Product Range: 7000 Series
  • Contact Current Max: 5A
  • Switch Mounting: Through Hole
  • Contact Voltage AC Nom: 20V
  • Switch Terminals: Solder
  • Contact Voltage DC Nom: 20V
  • SVHC: Lead (15-Jan-2019)
  • Actuation Type: Lever
  • Bush Diameter: 6.22mm
  • Bush Thread Length: 7.11mm
  • Contact Resistance: 10mohm
  • Contact Voltage AC Max: 20V
  • Contact Voltage DC Max: 20V
  • External Depth: 15.75mm
  • External Length / Height: 11.68mm
  • External Width: 8.18mm
  • Height: 11.68mm
  • Lever Length: 7mm
  • No. of Mechanical Operations: 40000
  • Operating Temperature Max: 65°C
  • Operating Temperature Min: -20°C
  • Switching Power Max: 0.4VA
  • Thread Size: 1/4 - 40
