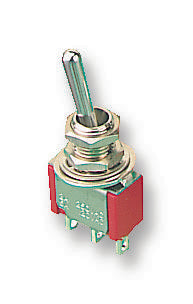

C&K COMPONENTS - 7108SYZQE - Toggle Switch, On-None-(On), SPDT, Non Illuminated, 7000, Panel Mount, 5 A
- Switch Operation: On-(On)
- Contact Configuration: SPDT
- Illumination: Non Illuminated
- Product Range: 7000 Series
- Contact Current Max: 5A
- Switch Mounting: Panel
- Contact Voltage AC Nom: 250V
- Switch Terminals: Solder
- Contact Voltage DC Nom: 28V
- SVHC: Lead (15-Jan-2019)
- Actuation Type: Lever
- Bush Thread Length: 8.88mm
- Contact Current @ Contact Voltage AC Max: 2A
- Contact Current @ Contact Voltage DC Max: 5A
- Contact Current AC Max: 2A
- Contact Current DC Max: 5A
- Contact Resistance: 10mohm
- Contact Voltage AC Max: 250V
- Contact Voltage DC Max: 28V
- External Depth: 10.54mm
- External Length / Height: 12.7mm
- External Width: 6.86mm
- Height: 12.7mm
- Lever Length: 11mm
- No. of Mechanical Operations: 40000
- Operating Temperature Max: 85°C
- Operating Temperature Min: -55°C
- Panel Cutout Diameter: 6.35mm
- Tab Blade Thickness: 0.76mm
- Thread Size: 1/4" x 40 NS
