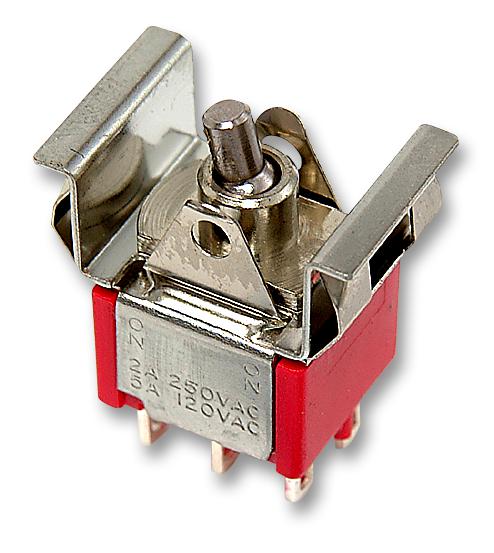

7207J50 ZQE++ Switch Body, DPDT, 1WB C&K Components

C&K COMPONENTSUGS :7207J50 ZQE++ Code de commande:9575014

Prix:
Prix ​​promotionnel€9,75

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (31 unité)

Documents et téléchargements

description

C&K COMPONENTS - 7207J50 ZQE++ - Rocker Switch, On-Off-(On), DPDT, Non Illuminated, Panel Mount, Black, 7000

  • Illumination: Non Illuminated
  • Contact Configuration: DPDT
  • Switch Operation: On-Off-(On)
  • Actuator / Cap Colour: Black
  • Switch Mounting: Panel
  • Contact Current Max: 2A
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 28V
  • Product Range: 7000 Series
  • SVHC: Lead (15-Jan-2019)
  • Contact Current @ Contact Voltage AC Max: 2A
  • Contact Current @ Contact Voltage DC Max: 5A
  • Contact Current AC Max: 5A
  • Contact Current DC Max: 5A
  • Contact Current Rating: 5A
  • Contact Resistance: 10mohm
  • Contact Voltage AC Max: 250V
  • Contact Voltage DC Max: 125V
  • External Depth: 8.89mm
  • External Length / Height: 12.7mm
  • External Width: 11.43mm
  • Height: 12.7mm
  • No. of Mechanical Operations: 40000
  • Operating Temperature Max: 65°C
  • Operating Temperature Min: -20°C
  • Tab Blade Thickness: 0.76mm
