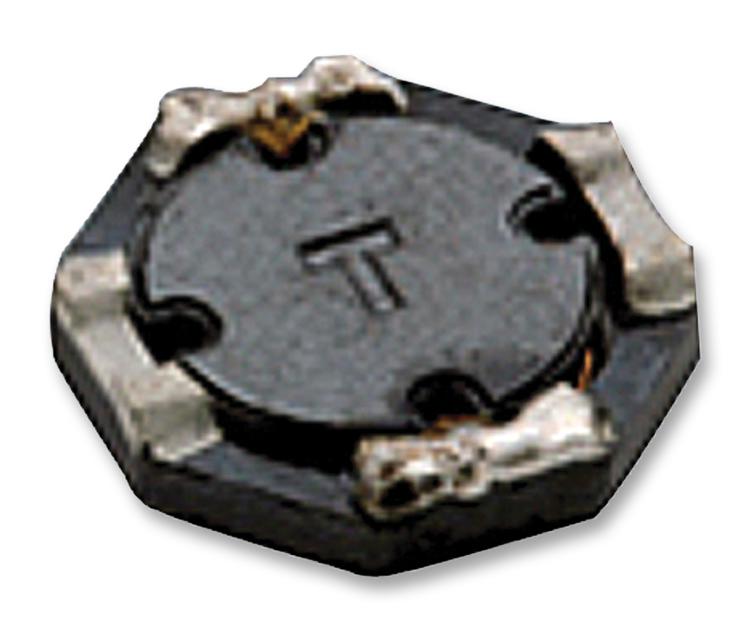

WURTH ELEKTRONIK - 744029006 - Power Inductor (SMD), 6.8 µH, 820 mA, Shielded, 650 mA, WE-TPC, 2.8mm x 2.8mm x 1.35mm
- Inductance: 6.8µH
- RMS Current (Irms): 820mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 650mA
- Product Range: WE-TPC Series
- Power Inductor Case: 2.8mm x 2.8mm x 1.35mm
- DC Resistance Max: 0.3ohm
- Inductance Tolerance: ± 30%
- SVHC: No SVHC (15-Jan-2019)
- Inductor Type: Power
- No. of Pins: 2Pins
- Resonant Frequency: 55MHz
- Self Resonant Frequency Min: 55MHz
