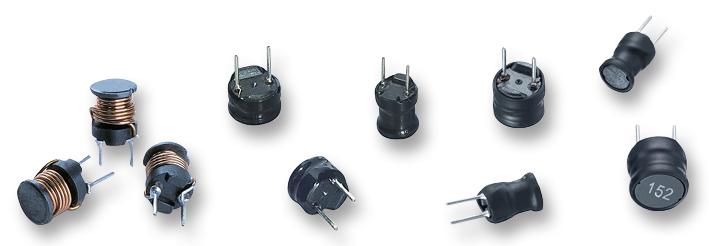

WURTH ELEKTRONIK - 7447452392 - Choke, Line Filter, WE-TI Series, 3.9 mH, 280 mA, 250 mA, 4.8 ohm, ± 10%
- Product Range: WE-TI Series
- Inductance: 3.9mH
- RMS Current (Irms): 280mA
- Saturation Current (Isat): 250mA
- DC Resistance Max: 4.8ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2019)
- Core Material: Ferrite
- DC Current Rating: 280mA
- Lead Spacing: 5mm
- No. of Pins: 2Pins
- Self Resonant Frequency Min: 850kHz
