description

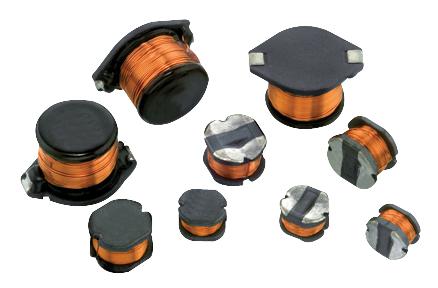

WURTH ELEKTRONIK - 744775380 - Wirewound Inductor, 8 mH, 25 ohm, 700 kHz, 140 mA, WE-ASI
- Inductance: 8mH
- RMS Current (Irms): 140mA
- Inductor Construction: Wirewound
- Saturation Current (Isat): 90mA
- Product Range: WE-ASI Series
- Power Inductor Case: 8mm x 7mm x 5mm
- DC Resistance Max: 25ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2019)
- Lead Spacing: 2mm
- No. of Pins: 2Pins
- Resonant Frequency: 700MHz
- Self Resonant Frequency Min: 700kHz
