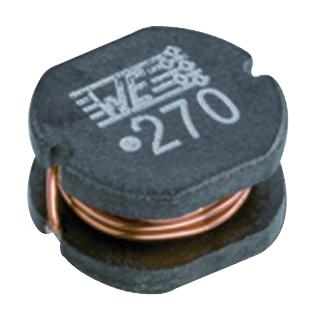

WURTH ELEKTRONIK - 744776112 - Power Inductor (SMD), 12 µH, 2.72 A, Unshielded, 3.15 A, WE-PD2, 10mm x 9mm x 5.4mm
- Inductance: 12µH
- RMS Current (Irms): 2.72A
- Inductor Construction: Unshielded
- Saturation Current (Isat): 3.15A
- Product Range: WE-PD2 Series
- Power Inductor Case: 10mm x 9mm x 5.4mm
- DC Resistance Max: 0.07ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Resonant Frequency: 20MHz
- Self Resonant Frequency Min: 20MHz
