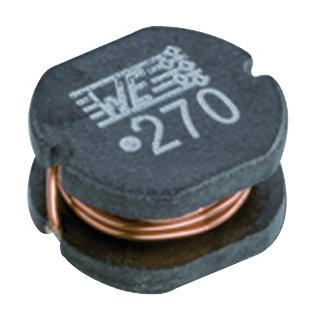

WURTH ELEKTRONIK - 744776156 - Power Inductor (SMD), 56 µH, 1.36 A, Unshielded, 1.53 A, WE-PD2, 10mm x 9mm x 5.4mm
- Inductance: 56µH
- RMS Current (Irms): 1.36A
- Inductor Construction: Unshielded
- Saturation Current (Isat): 1.53A
- Product Range: WE-PD2 Series
- Power Inductor Case: 10mm x 9mm x 5.4mm
- DC Resistance Max: 0.19ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2019)
- Resonant Frequency: 9MHz
- Self Resonant Frequency Min: 9MHz
