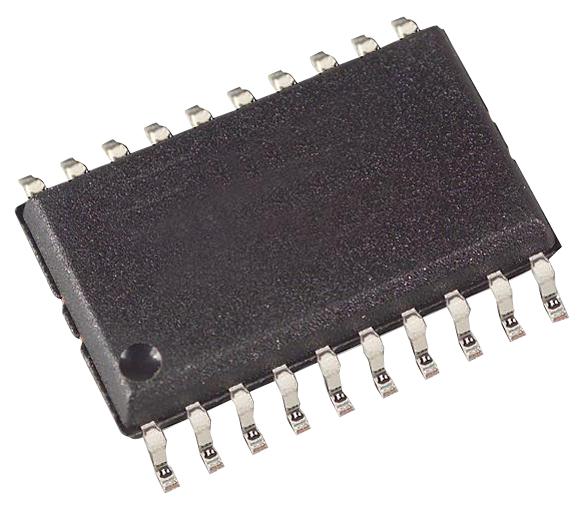

NEXPERIA - 74HCT574D,653 - Flip-Flop, Tri State Non Inverted, Positive Edge, 74HCT574, D, 18 ns, 123 MHz, 6 mA, SOIC
- Logic Family / Base Number: 74HCT574
- Flip-Flop Type: D
- Propagation Delay: 18ns
- Frequency: 123MHz
- Output Current: 6mA
- Logic Case Style: SOIC
- No. of Pins: 20Pins
- Trigger Type: Positive Edge
- IC Output Type: Tri State Non Inverted
- Supply Voltage Min: 4.5V
- Supply Voltage Max: 5.5V
- Logic IC Family: 74HCT
- Logic IC Base Number: 74574
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: -
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Base Number: 74
- Logic Function Number: 74574
- Logic IC Base Number: 74574
- Logic IC Function: Octal D-Type Flip-Flop
- No. of Gates: 8
- No. of Inputs: 1
- Operating Temperature Range: -40°C to +125°C
- Supply Voltage: 5V
- Supply Voltage Range: 4.5V to 5.5V
- Termination Type: Surface Mount Device
