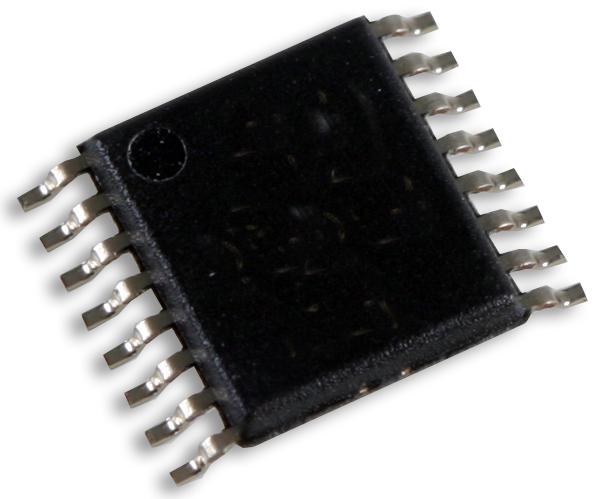

ONSEMI - 74VHC595MTCX - Shift Register, 74VHC595, Serial to Parallel, 1 Element, 8 bit, TSSOP, 16 Pins
- Logic Family / Base Number: 74VHC595
- Shift Register Function: Serial to Parallel
- No. of Elements: 1 Element
- No. of Bits Per Element: 8bit
- Logic Case Style: TSSOP
- No. of Pins: 16Pins
- Supply Voltage Min: 2V
- Supply Voltage Max: 5.5V
- IC Output Type: Tri State
- Logic IC Family: 74VHC
- Logic IC Base Number: 74595
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: -
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Base Number: 74595
- Frequency: 115MHz
- Input Current Max: 100nA
- Logic Function Number: 74595
- Logic IC Base Number: 74595
- Logic IC Function: 8bit Shift Register with Output Latches
- Logic Type: Shift Register
- No. of Elements: 1Elements
- Operating Temperature Range: -40°C to +85°C
- Supply Voltage Range: 2V to 5.5V
- Termination Type: Surface Mount Device
