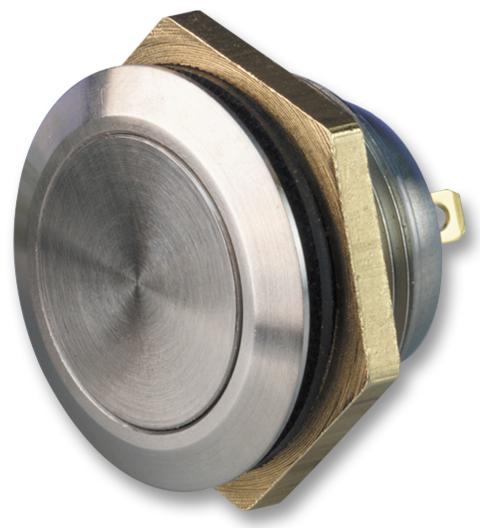

ITW SWITCHES - 76-9511/4044 - Vandal Resistant Switch, 76-95, 22.3 mm, DPDT-DB, Momentary, Flush, Natural
- Contact Configuration: DPDT-DB
- Actuator / Cap Colour: Natural
- Product Range: 76-95 Series
- Switch Operation: Momentary
- Illumination Colour: Non-illuminated
- Switch Terminals: Solder Lug
- Contact Current Max: 10A
- Contact Voltage AC Max: 250V
- Operating Force: 2.6N
- Contact Voltage DC Max: 5V
- SVHC: No SVHC (17-Dec-2015)
- Behind Panel Depth: 25.7mm
- Contact Current AC Max: 10A
- Contact Current DC Max: 10mA
- Contact Resistance: 25mohm
- Contact Voltage VAC: 250V
- Contact Voltage VDC: 5V
- Current Rating: 10mA
- External Diameter: 27mm
- External Length / Height: 29mm
- External Width: 43mm
- IP / NEMA Rating: IP67
- IP Rating: IP67
- Insulation Resistance: 1000Mohm
- Material: Stainless Steel
- No. of Mechanical Operations: 1000000
- Operating Temperature Max: 105°C
- Operating Temperature Min: -30°C
- Panel Cutout Diameter: 22.3mm
- Panel Thickness Max: 2.5mm
- Pushbutton Actuator Style: Flush
- Pushbutton Switch Type: Anti-Vandal
- Switch Mounting: Panel
