774-306 PNOZ/x2.1/24V Relay, Safety, DPST-NO, 240Vac, 6a PILZ

PILZUGS :774-306 PNOZ/X2.1/24V Code de commande:599750

Prix:
Prix ​​promotionnel€332,35

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (88 unité)

Documents et téléchargements

description

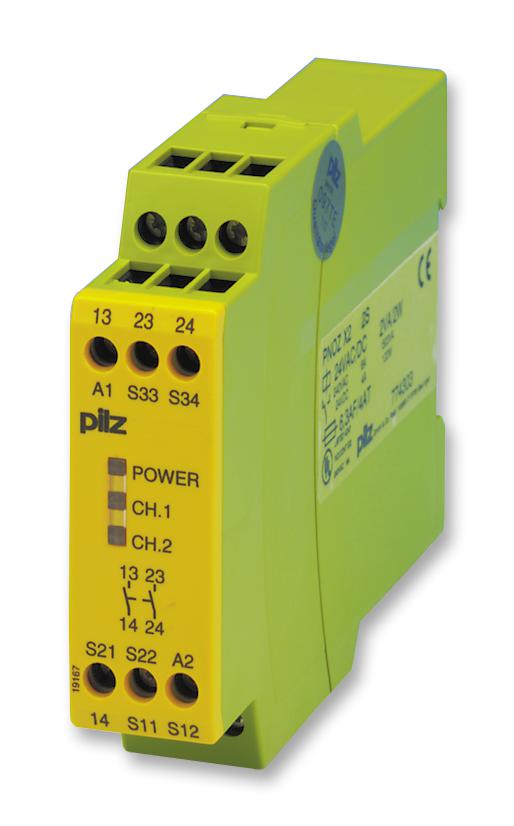

PILZ - 774-306 PNOZ/X2.1/24V - Safety Relay, 24 V, DPST-NO, PNOZ X2.1, DIN Rail, 6 A, Screw

  • Coil Voltage: 24V
  • Contact Configuration: DPST-NO
  • Product Range: PNOZ X2.1 Series
  • Relay Mounting: DIN Rail
  • Contact Current: 6A
  • Relay Terminals: Screw
  • Contact Voltage AC Nom: 240V
  • Contact Voltage DC Nom: 24V
  • Contact Material: Silver Tin Oxide
  • IP Rating: IP20, IP40, IP54
  • SVHC: No SVHC (15-Jan-2019)
  • Approvals / Standards: EN 60204, EN 60947, EN 62061, IEC 61511, ISO 13849
  • Coil Voltage VAC Nom: 24V
  • Coil Voltage VDC Nom: 24V
  • Contact Current AC Max: 6A
  • Contact Current DC Max: 6A
  • Contact Current Max: 6A
  • Contact Voltage AC Max: 240V
  • Contact Voltage DC Max: 24V
  • External Depth: 121mm
  • External Height: 87mm
  • External Length / Height: 87mm
  • External Width: 22.5mm
  • Input Voltage: 24V
  • Operating Temperature Max: 55°C
  • Operating Temperature Min: -10°C
  • Performance Level: PL e
  • Power Consumption: 2W
  • Safety Category: Level 4
  • Safety Integrity Level: SIL3, SIL CL3
  • Supply Voltage: 24V
  • Switching Capacity: 240Vac, 5A/24Vdc, 4A
