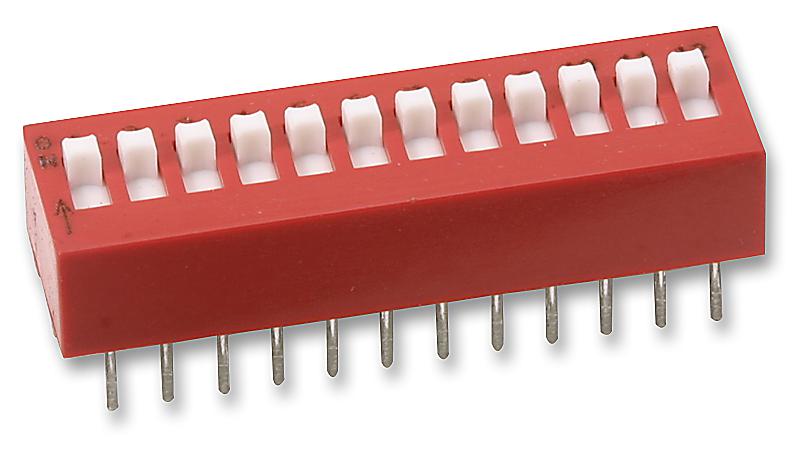

78B12ST Switch, Dil, Slide, 12WAY GRAYHILL

GRAYHILLUGS :78B12ST Code de commande:9479090

Prix:
Prix ​​promotionnel€14,15

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Seulement 3 produits disponibles

Documents et téléchargements

description

GRAYHILL - 78B12ST - DIP / SIP Switch, 12 Circuits, Slide, Through Hole, SPST, 24 VDC, 150 mA

  • No. of Circuits: 12Circuits
  • Switch Actuator Style: Slide
  • Switch Mounting: Through Hole
  • Contact Configuration: SPST
  • Contact Voltage DC Max: 24VDC
  • Contact Current DC Max: 150mA
  • Product Range: 78 Series
  • Switch Type: DIP Sealed
  • SVHC: No SVHC (27-Jun-2018)
  • Actuation Type: Raised
  • Actuator Type: Raised Slide
  • Contact Resistance: 30mohm
  • Current Rating: 4A
  • Dielectric Strength VDC: 500V
  • External Depth: 9.65mm
  • External Length / Height: 7.49mm
  • Insulation Resistance: 5000Mohm
  • Lead Length: 2.54mm
  • Lead Spacing: 2.54mm
  • Length: 32.5mm
  • Material: Thermoplastic UL94V0
  • No. of Mechanical Operations: 20000
  • No. of Positions: 12Ways
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Pin Configuration: DIL
  • Pitch Spacing: 2.54mm
  • Row Pitch: 7.62mm
  • Switch Operation: Off-On
