790D475X9040B2BE3 Cap, 4.7µF, 40V, 10%, Through Hole Vishay

VISHAYUGS :790D475X9040B2BE3 Code de commande:1754025

Prix:
Prix ​​promotionnel€6,94

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (239 unité)

Documents et téléchargements

description

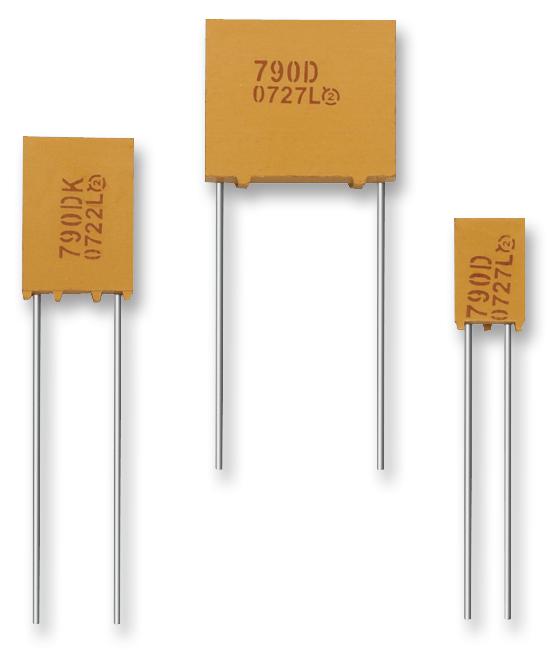

VISHAY - 790D475X9040B2BE3 - Tantalum Capacitor, Resin Molded, 4.7 µF, 40 V, ± 10%, Radial Leaded, 5.08 mm

  • Capacitance: 4.7µF
  • Voltage Rating: 40V
  • Product Range: 790D Series
  • Capacitance Tolerance: ± 10%
  • Capacitor Terminals: Radial Leaded
  • Lead Spacing: 5.08mm
  • Operating Temperature Min: -55°C
  • Operating Temperature Max: 125°C
  • ESR: -
  • SVHC: No SVHC (15-Jan-2019)
  • Capacitance Tolerance ±: ± 10%
  • Capacitor Mounting: Through Hole
  • External Depth: 4.8mm
  • External Length / Height: 10.5mm
  • External Width: 7.3mm
  • Height: 10.5mm
  • Impedance: 2ohm
  • Impedance Frequency: 100kHz
  • Impedance Temperature: 25°C
  • Lead Diameter: 0.5mm
  • Lead Length: 12mm
  • Leakage Current: 1.8µA
  • No. of Pins: 2Pins
  • Operating Temperature Range: -55°C to +125°C
